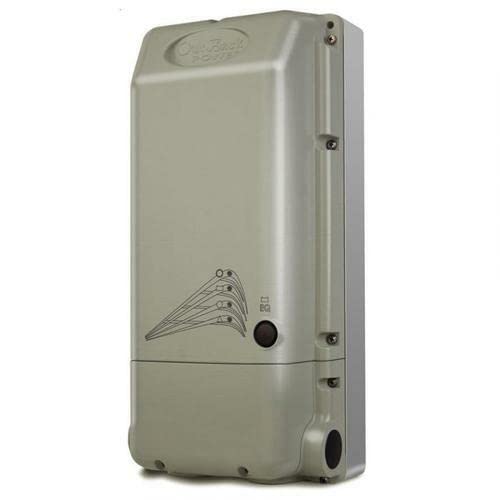

Outback Power FMEXTREME 80A MPPT Solar Charge Controller for RV, Marine & Off-Grid Systems | High Efficiency Solar Panel Regulator

Features: Environmentally-rated sealed enclosure: IP54 design for international market NEMA 3R for North American market Solid-state, passively cooled design enables sealed architecture, long-term reliability, and quieter operation Remote battery voltage sense improves battery charging performance and voltage measurement accuracy Powerful Simplified Fault sense supports today s and tomorrow s safety requirements Easily-integrated AXS Card Modbus/TCP interface provides powerful command, control and integration for industrial customers Planned certifications include: UL1741, IEC 62109, IEC 62509, RoHS, CE

Nominal Battery Voltages 12, 24, 36, 48 or 60Vdc (Selectable via field programming at start-up)

Maximum Output Current 80A @ 40°C / 104°F with adjustable current limit

PV Open Circuit Voltage (VOC) 150Vdc

Power Conversion Efficiency 98% @ 80A in a 48Vdc System - typical

Remote Display and Controller Optional MATE3, MATE or MATE2
