48V 1800W Brushless Electric Motor Kit with Controller & Throttle Grip - Compatible with Go Kart, Scooter, eBike, Motorized Bicycle, ATV & Moped | High Power Electric Conversion Kit for DIY Projects & Vehicle Upgrades

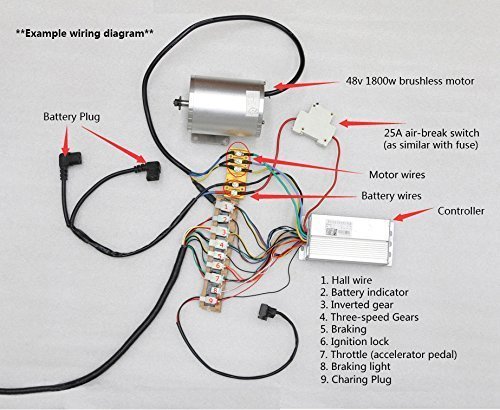

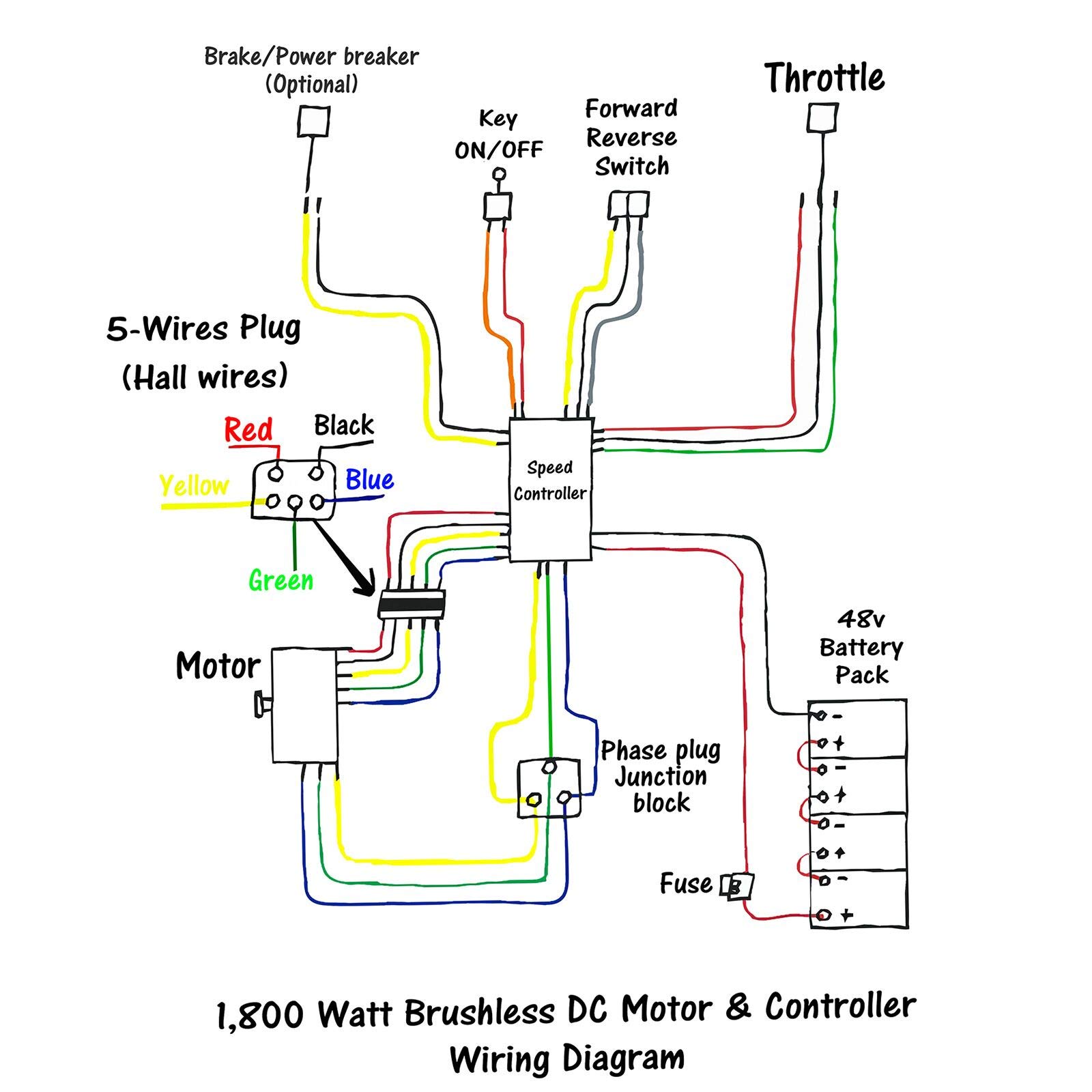

Why choose Brushless motor?1. Less electrical and electromagnetic noise2. Long lifespan: No brushes to wear out, around triple lifespan as brushed motor3. Low maintenance: No brushes to replace4. Powerfrugal: Power consumption is 1/3 of brushed motor5. High efficiency: Brushless motors are typically 85-90% efficient whereas brushed DC motors are around 75-80% efficient.What's the difference between a brushless motor and brushed motorBrushed and brushless direct current electric motors differ in the way the electric current is transferred to the commutator or electromagnets that cause the rotor to continue turning. Essentially, in a brushed motor the current is transferred mechanically via metallic brushes, whereas in a brushless motor the rotor is turned electronically with no need for physical contacts.Wiring:Battery :Thick Black (Power Negative) /Thick Red (Power Positive)Motor :Thick Yellow (Motor Negative) /Thick Blue (Motor Positive)Ignition Switch :Thin Red(VCC)/Thin BlueIndicator : Thin red (Indicator power output) /thin black (indicator negative)Brake :thin yellow (Brake signal)/thin black(Negative Power)Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power)Charge Port : Thin red (charge input power Positive) /thin black (Power negative)Brake Light: Thin red (power Positive) /thin black (Power negative)The controller have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.

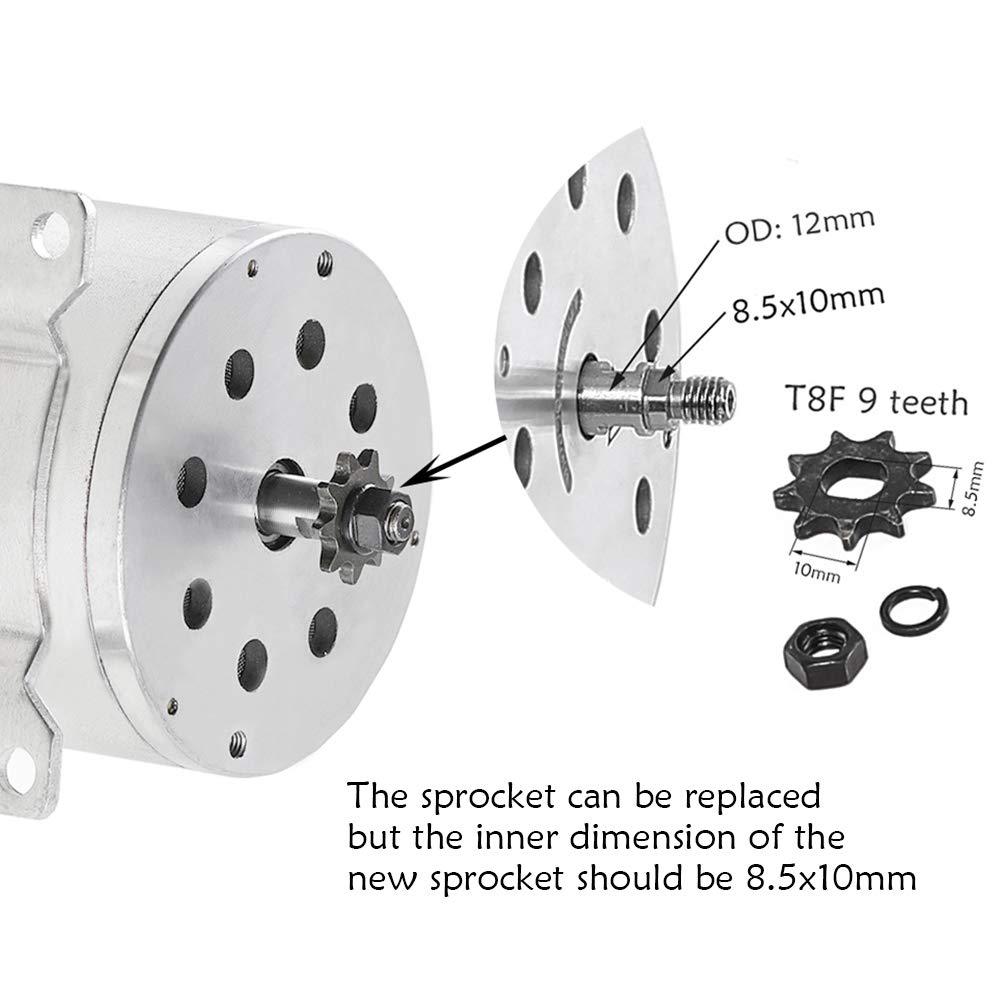

Brushless Electric Motor Reliable 48V DC, 1800w super power, 9 tooth sprocket(fits for T8F chains), 4500 RPM rated speed, Horsepower 1.8HP

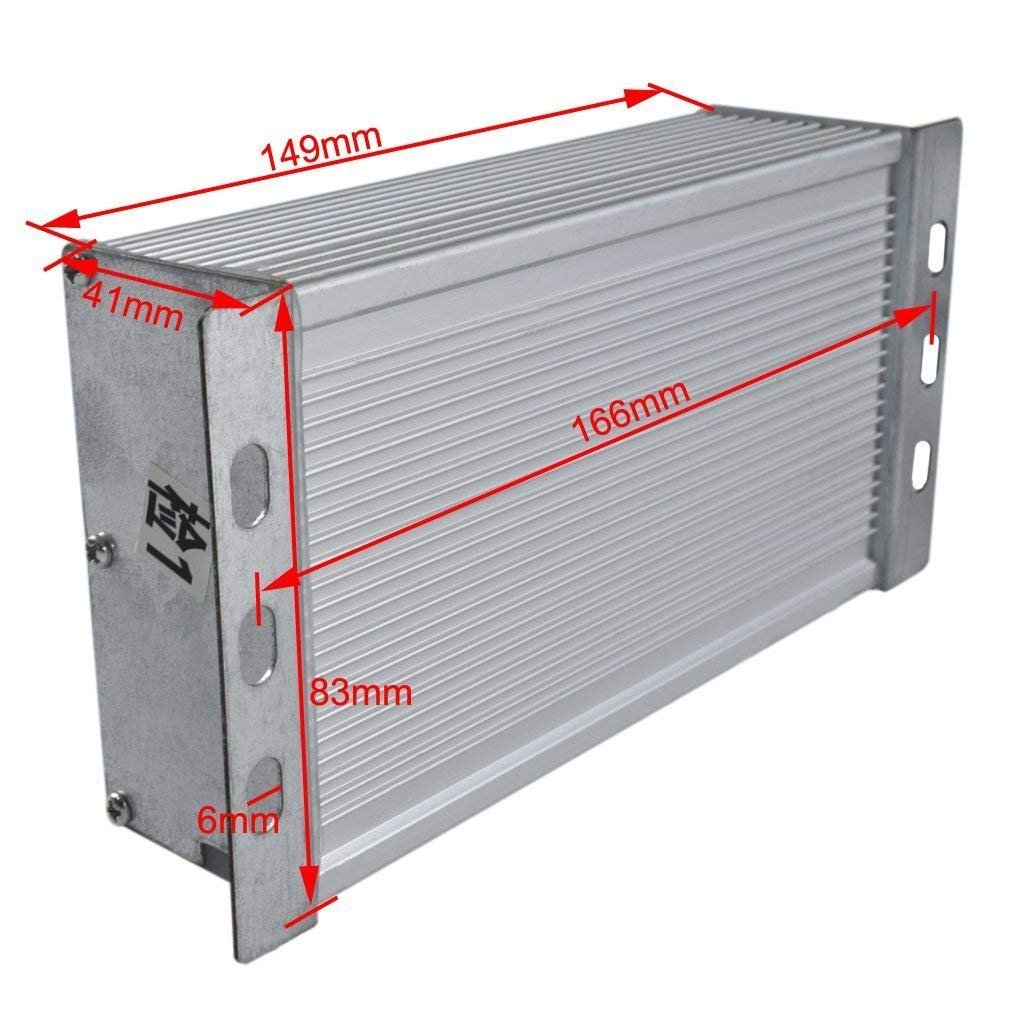

Brushless Electric Controller Rated voltage 48V DC; Current limit 32A; Match motor 48VDC 1800 W ; Conversion efficency 95%

Compatibility Suitable for go karts, scooters, e-bike, atv, motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes

Outstanding Stand out from many ordinary brushed motors and controllers, it's high efficiency, powerfrugal, low noise, long lifespan, stable

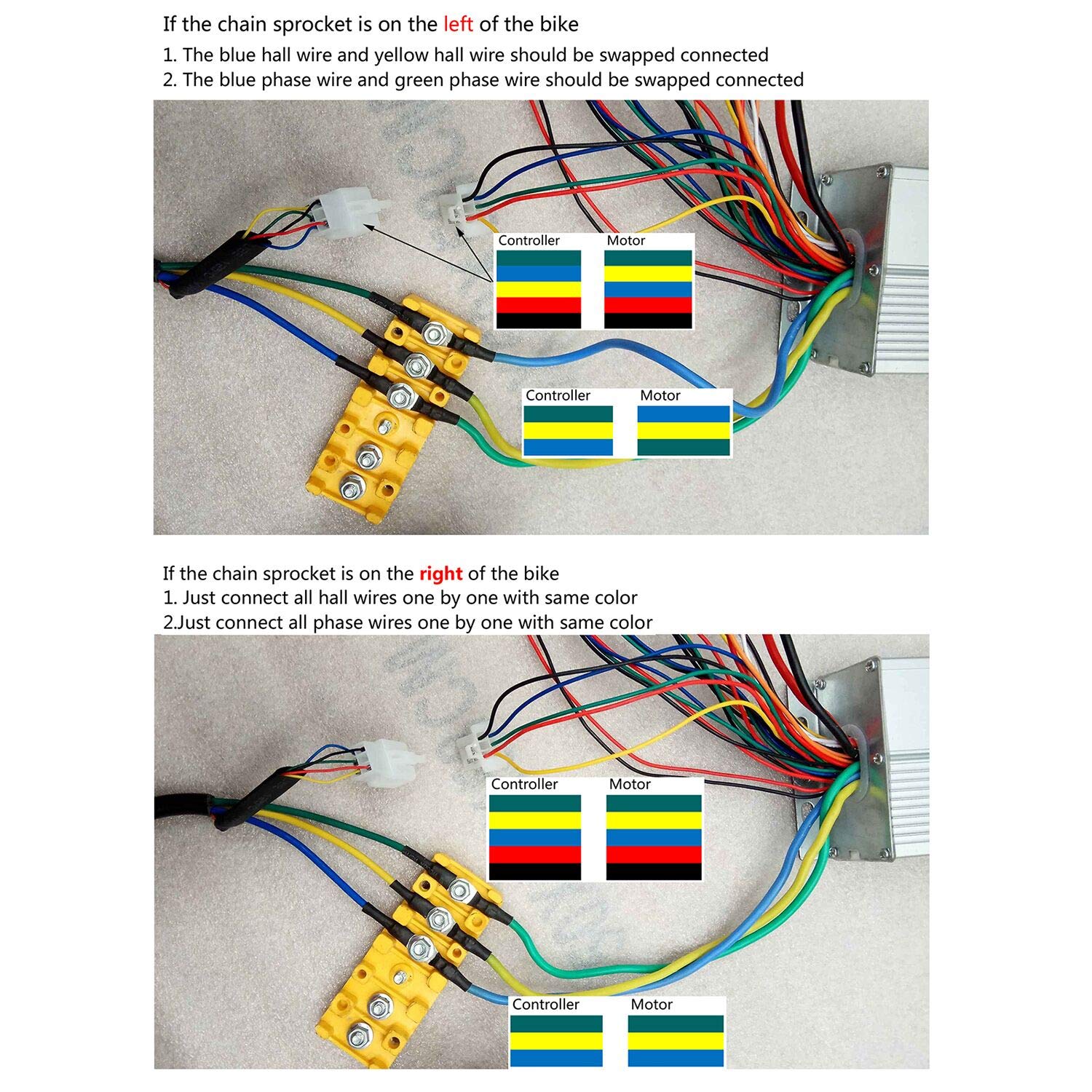

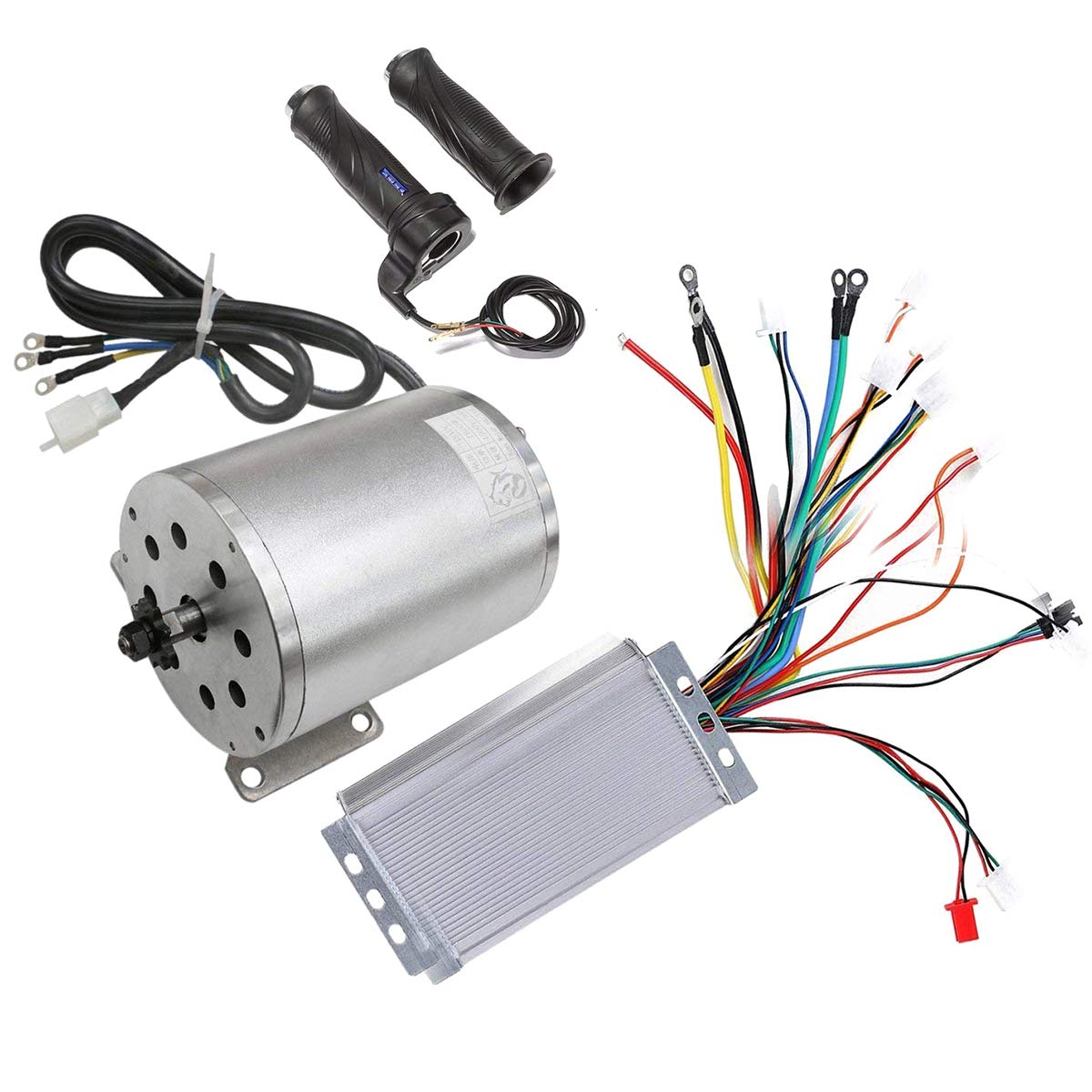

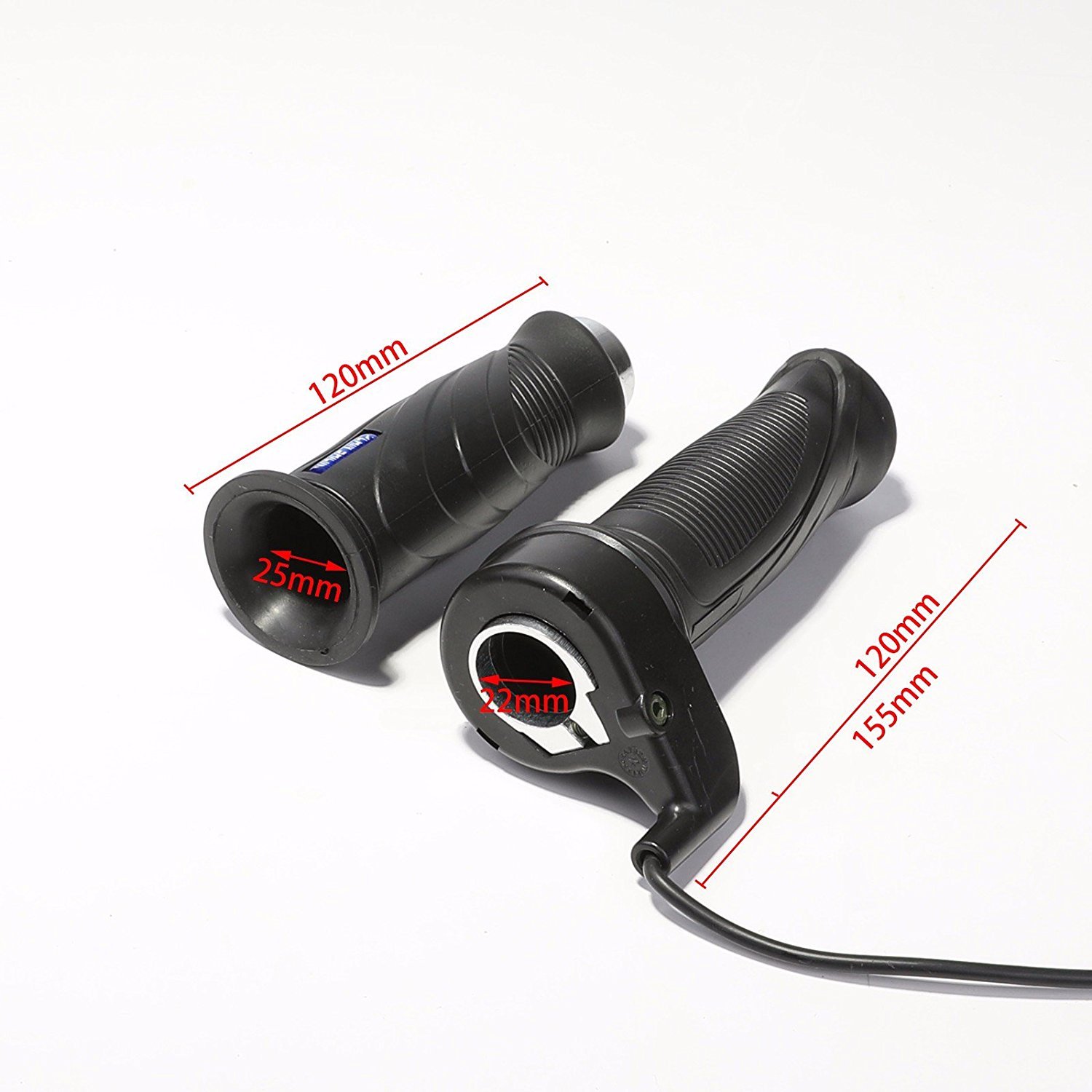

Package include 1 x brushless electric motor & 1 x brushless controller & 1 x throttle grip(Refer to picture and below "Product Description" for wiring instruction)
