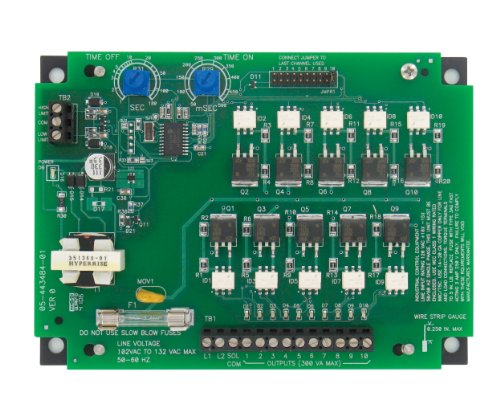

Dwyer DCT510A Low Cost 10-Channel Timer Controller - 102-132V AC Input for Industrial Automation & HVAC Systems

Ideal for pneumatic conveying systems, the Series DCT500A Low Cost Timer Controller is designed to provide continuous or on-demand cleaning for receivers and pulse jet systems. Available in either 4, 6 or 10 channels, each unit is the same size, minimizing enclosure space and reducing overall system installation cost. The DCT500A is simple and easy to use. Time-On and Time-Off settings are selected using two potentiometers. High Limit and Low Limit control inputs are provided for use with on demand systems. The new enhanced board circuitry of the DCT500A synchronizes the on-time pulse to the power line to achieve a pulse stability of ±1 msec

Output Channels: 10 channels

Power Requirements: 102 to 132 VAC 50 or 60 Hz

Temperature Limits: Storage: -40 to 176°F (-40 to 80°C); Operating: -40 to 140°F (-40 to 60°C)

On Time: 50 msec to 500 msec; Off Time: 1 sec to 180 sec.
