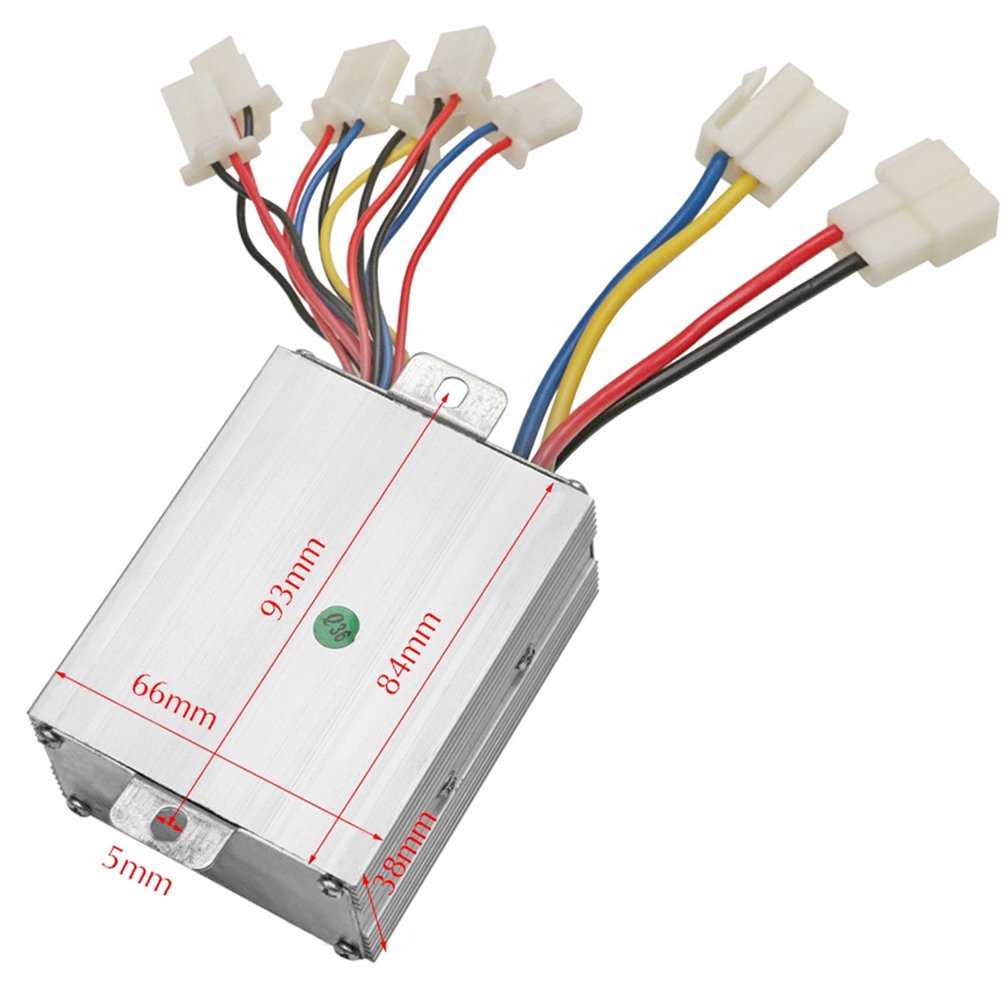

24V 500W Brushless Motor Speed Controller for Electric Scooter, E-Bike, Bicycle & Tricycle - Perfect for DIY Electric Vehicle Upgrades and Commuting Solutions

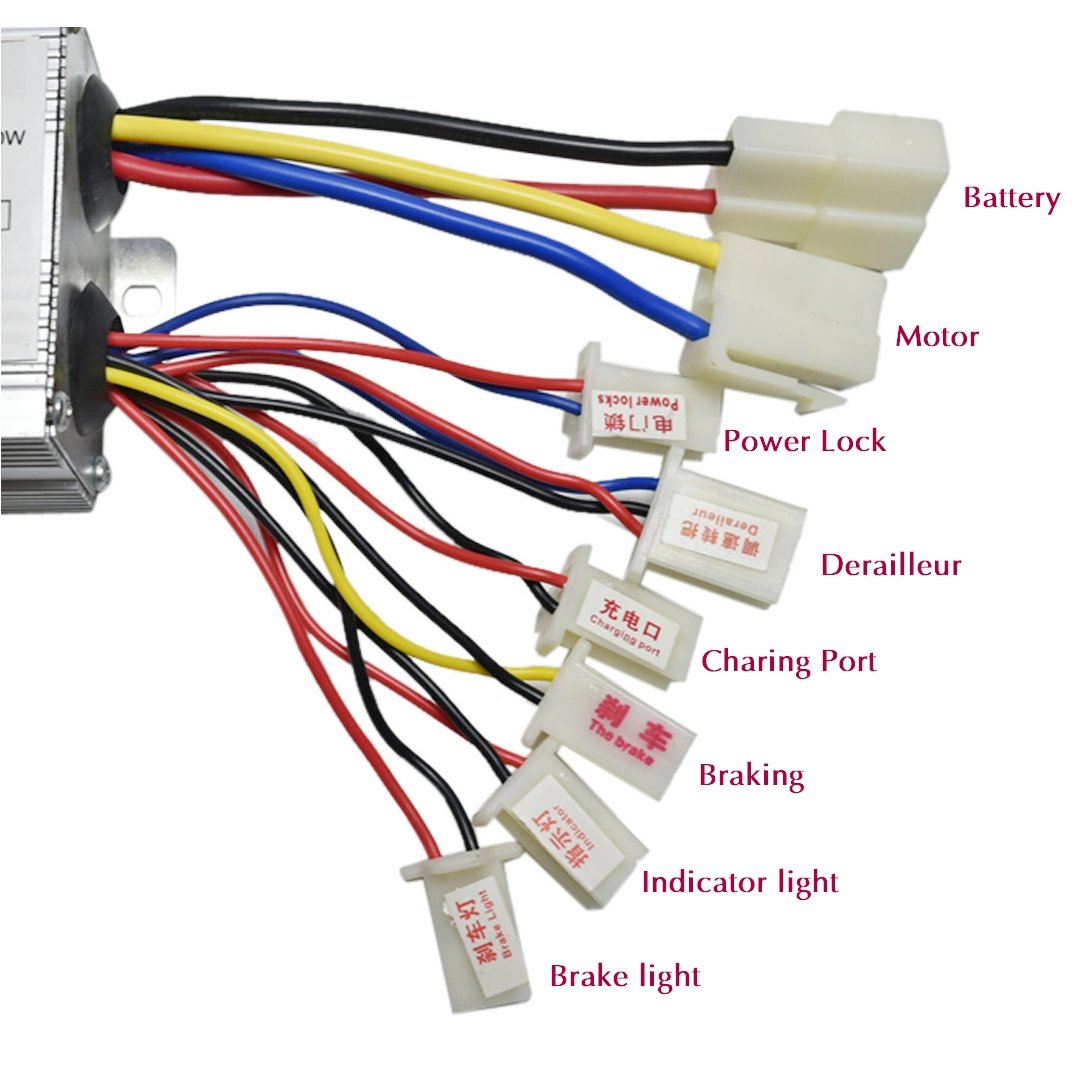

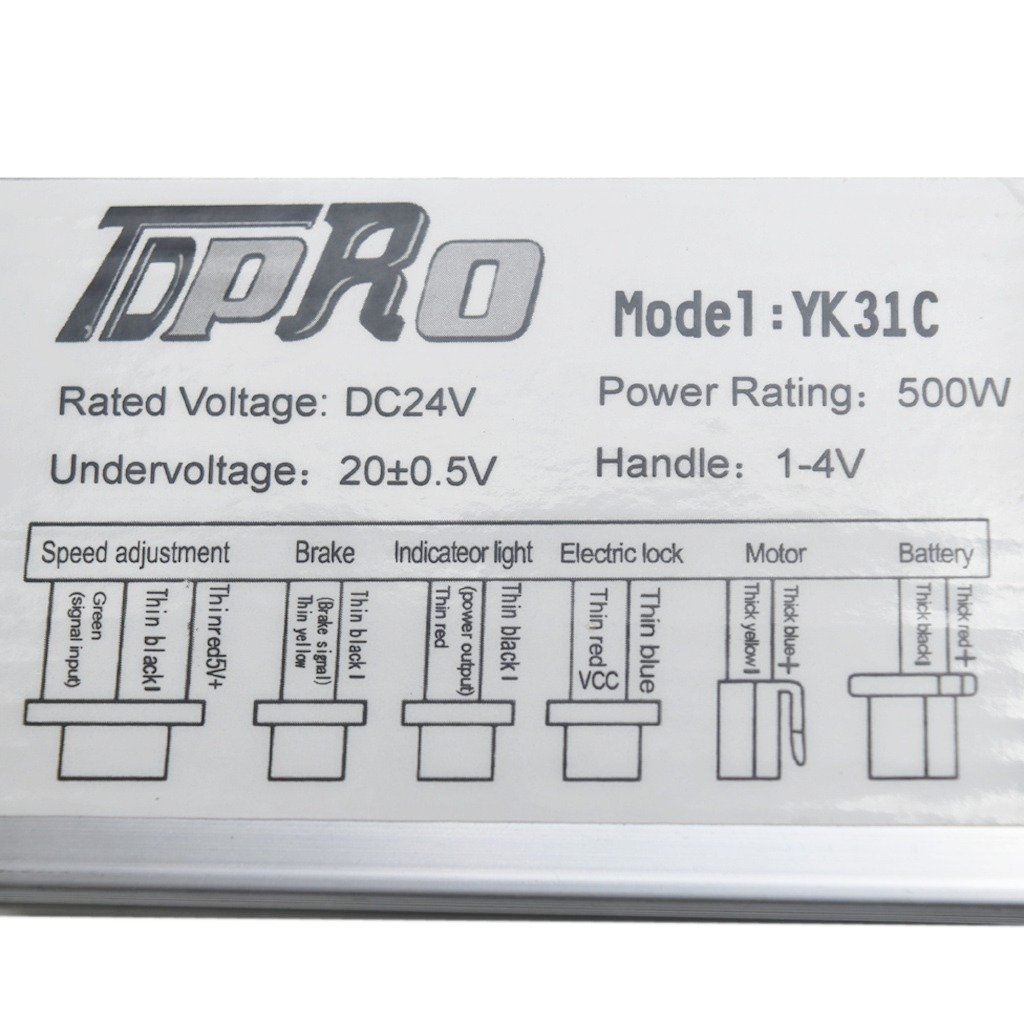

Specifications: Rated voltage: 24V DCMatch motor: 24V 500 WConversion efficency: 95% Under Voltage Protection: 20±0.5VSpeed regulator (throttle): 1-4 VWiring:This controller has 8 connectors, compatible with many 24V bikes with up to 500W motors1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications. Available Model (SPEC): 24v 250w / 24v 350w / 24v 500w / 36v 350w / 36v 500w / 36v 800w / 48v 100w

√ Quality universal 24v 500w brushed controller

√ Fit for 24v 500w brushed motor

√ Controller adaptors waterproof design

√ Suitable for electric scooter, e-bike, tricycle, mini bike, pocket bike, go kart, atv, moped

√ Refer to picture and below "Product Description" for wiring instruction and specifications
