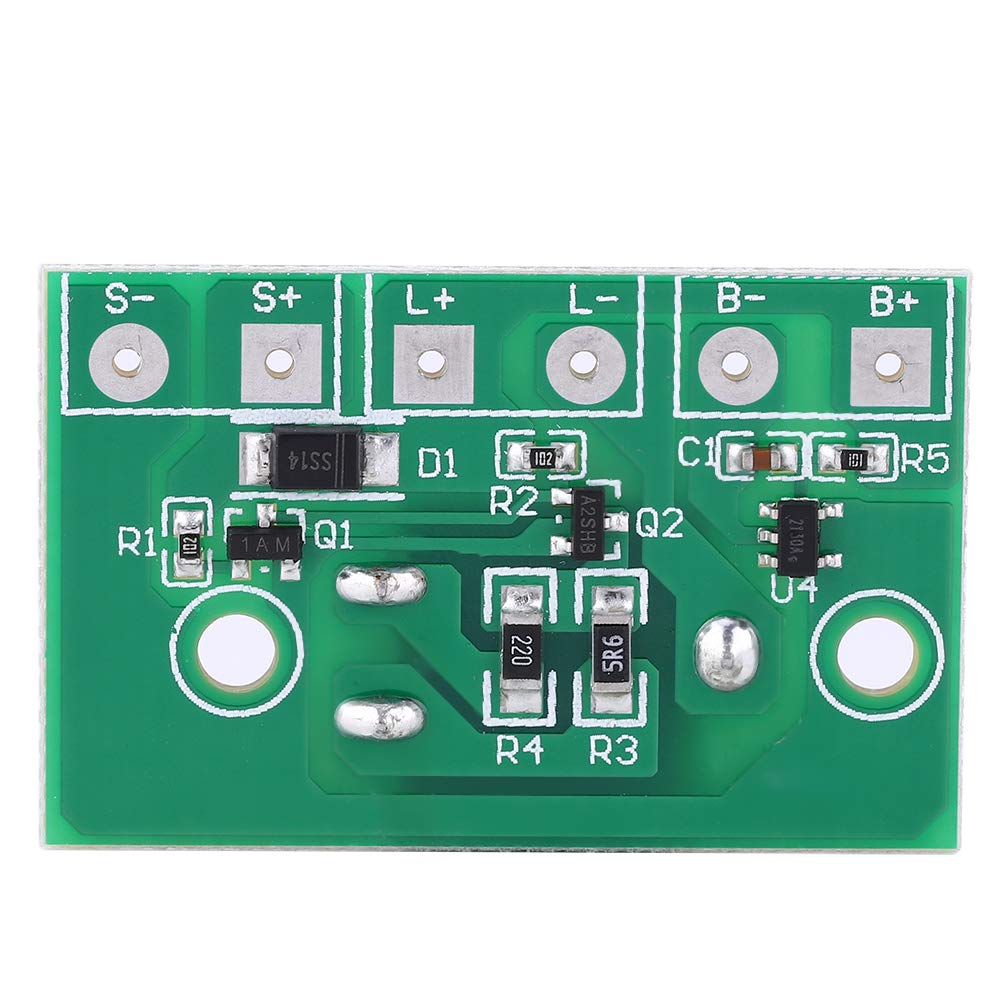

Solar Lamp Controller - 3.7V Lithium Battery Charging Module with On/Off Switch | Solar Power Circuit Board for Outdoor Garden Lights, Pathway Lighting & Camping

Specification:Item Type: Solar Lamp Controller ModuleWorking Voltage: 3.7V lithium batteryCharging Current: <1AOvercharge Protection: 4.25VOver Discharge Protection: 2.8VLight Board: 3.0-3.2V lamp beads in parallelOutput Power: <1WSolar Panel: 6VLevel: 3 Levels (light off, full power, low power)Working State: The solar panel recharges the battery when the light is on during the day. The LED light panel does not work. When there is no sunlight in the evening, the LED light is automatically turned on, that is, the battery automatically recharges during the day and night. Size: Approx. 36 x 23mm / 1.4 x 0.9inHole Distance: Approx. 25mm / 1inPackage List:1 x Module1 x User Manual

Solar lawn light control panel, dedicated to 3.7V lithium battery

With over-charge and over-discharge protection and three-levels switch (light off, full power, low power)

Charging during the day can be illuminated at night, automatic circulation without human intervention

Great workmanship and clear connection, which can provide stable performance

High quality of the product can make sure the durability and stability of the control panel
