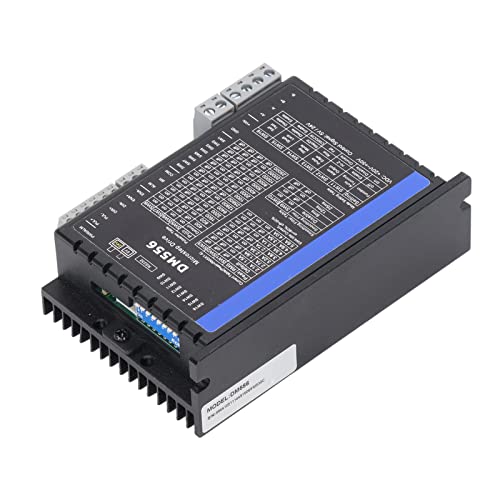

CNC Stepper Motor Controller - Ultra Low Vibration Digital 2 Phase Stepper Driver with Circuit Protection for Automation Equipment | Perfect for CNC Machines, 3D Printers & Industrial Robotics

Feature:1. [FOR STEPPER MOTOR] 2 phase stepper motor driver, using digital PID technology to achieve ultra low vibration and noise, optical isolation differential signal input, can drive 4, 6, 8 wire 2 phase stepper motor.2. [MULTIPLE FUNCTIONS] Settable 8 level current and adjustable 16 level subdivision, with power on auto tuning function, supports single and double pulse, the current is automatically halved when stationary.3. [PRODUCT PARAMETERS] Support 5V or 24V signal, select through a slide switch, the pulse response frequency can up to 200KHz, the maximum output current is 100mA, and the withstand voltage is 24VDC.4. [CIRCUIT PROTECTION] This 2 phase digital stepper motor driver has protection functions such as overvoltage and short circuit, with external alarm output, which ensures safe and reliable operation.5. [APPLICABLE MACHINES] Suitable for various small and medium sized automation equipment, such as engraving machine, marking machine, cutting machine, imagesetter, plotter, CNC machine tool, etc.Specification:Item Type: Stepper Motor DriverMaterial: ABS, aluminum alloyCooling Method: Natural cooling or forced coolingUse Environment: Can not be placed to other heating equipment, avoid dust, oil mist, corrosive gas, high humidity and strong vibration places, prohibit flammable gas and conductive dustTemperature: 0-50℃Humidity: 40-90%RHVibration: 10-55Hz/0.15mmStorage Temperature: -20-65℃ Parameter Minimum Typical Maximum Output Current (peak) 2.1A 5.6A Input Power Voltage 20VDC 24/36VDC 50VDC Control Signal Input Current 7mA 10mA 16mA Step Pulse Frequency 0KHz 200KHz Insulation Resistance 1

[FOR STEPPER MOTOR] 2 phase stepper motor driver, using digital PID technology to achieve ultra low vibration and noise, optical isolation differential signal input, can drive 4, 6, 8 wire 2 phase stepper motor.

[MULTIPLE FUNCTIONS] Settable 8 level current and adjustable 16 level subdivision, with power on auto tuning function, supports single and double pulse, the current is automatically halved when stationary.

[PRODUCT PARAMETERS] Support 5V or 24V signal, select through a slide switch, the pulse response frequency can up to 200KHz, the maximum output current is 100mA, and the withstand voltage is 24VDC.

[CIRCUIT PROTECTION] This 2 phase digital stepper motor driver has protection functions such as overvoltage and short circuit, with external alarm output, which ensures safe and reliable operation.

[APPLICABLE MACHINES] Suitable for various small and medium sized automation equipment, such as engraving machine, marking machine, cutting machine, imagesetter, plotter, CNC machine tool, etc.
