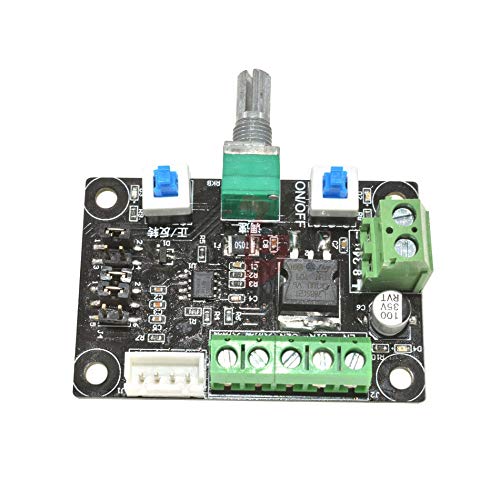

12V 24V DC Pulse Signal Generator for Stepper Motor Driver Controller - Speed Regulator for CNC, 3D Printers & Robotics (Industrial Automation & DIY Projects)

Features: 1.this module is a pulse generation module, supply the control signal to stepper driver. To control the stepper motor, it must be equipped with a drive. 2.this simple controller + stepper motor + stepper motor + DC power supply can be composed of a simple set of control platform. 3.the controller has high 5.4k-160khz, middle 540-16.6khz, low 80-2.4khz total of 3 kinds of low frequency signal can be used to select the jumper. 4.can produce pulse signal, can also produce PWM signal, can choose the jumper. 5.the frequency of measurement: PUL and common cathode end. Different stepper driver may mark different name EN=ENA=FREE Enable PUL=PULS=CLK Pulse DIR=CW=CWWDirection Common anode Connection method (B) EN+ PUL+DIR+ connect together to com+. EN- connect EN PUL- connect CLK DIR- connect DIR Package Included: 1 x Pulse Signal Generator to Stepper Motor Driver Module

DC 12V 24V Pulse Signal Generator for Stepper Motor Driver Controller Speed Regulator

Developed country Estimated Delivery Time: 7-18 days by Special line. 10-30 days for other country..We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.
