FLIPSKY 75100 V2.0 VESC-Based Speed Controller for Electric Skateboard, Scooter & Ebike - Aluminum PCB with Power Switch (103x58x18.5mm, Black) - Perfect for DIY Electric Vehicle Upgrades & High-Performance Motor Control

75100 With Alu. PCB V2.0 is based on VESC 75 series, programmable via vesc_tool3.0 (firmware5.2) with overheat and over current protection, regenerative braking capacity. It's designed with aluminum case, with good heat dissipation and max working voltage can be 20S, 84V. Also, 75100 With Alu. PCB V2.0: supports single serial port function, and integrates power on / off switch and key switch for Ebike / Escooter etc. Specs: Size: 103X58X24mm Voltage:14-84V (4-20S) Continuous Current: 100A Peak Current: 250A Firmware: 5.02; firmware upgrade available (Phase filter needs to be turned off for firmware 5.03 or newer) BEC: 5V@1A Modes: DC，BLDC，FOC(sinusoidal) Control Interface Ports: USB,CAN,UART Supported Sensors: ABI，HALL，AS5047，AS5048A Input Set Support: PPM，ADC，NRF,UART Wire Size: 12AWG Programmable: Yes Regenerative Capacity: Yes Power Switch Button: Red

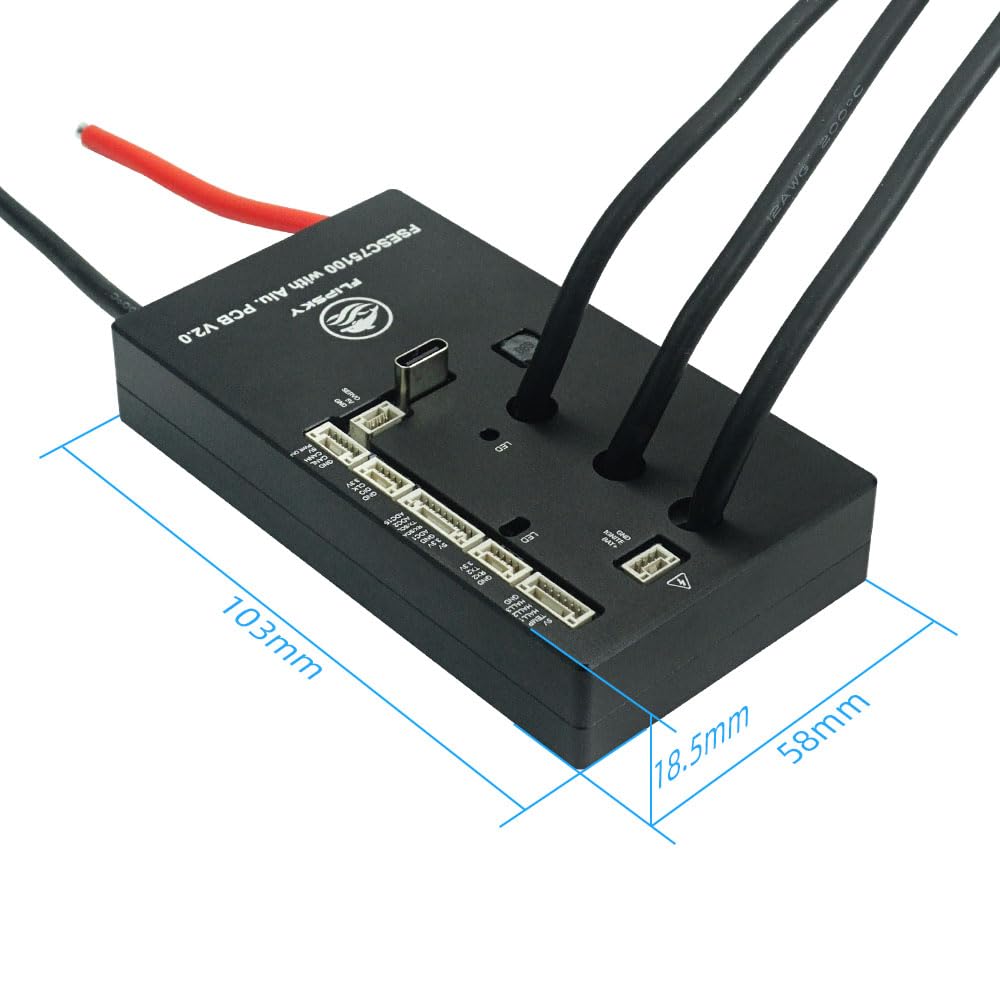

Size 103X58X24mm;Voltage14-84V (4-20S)

75100 With Alu. PCB V2.0 is based on VESC 75 series, programmable via vesc_tool3.0 (firmware5.2) with overheat and over current protection, regenerative braking capacity.

It's designed with aluminum case, with good heat dissipation and max working voltage can be20S, 84V. 75100 With Alu. PCB

V2.0 supports single serial port function, and integrates power on / off switch and key switch for Ebike / Escooter etc.

Continuous Current 100A;Peak Current 250A

Firmware 5.02; firmware upgrade available (Phase filter needs to be turned off for firmware 5.03 or newer)
