Automatic Generator Control Unit GCU-10 - Smart Controller for Backup Power Systems - Perfect for Home, RV & Emergency Power Supply

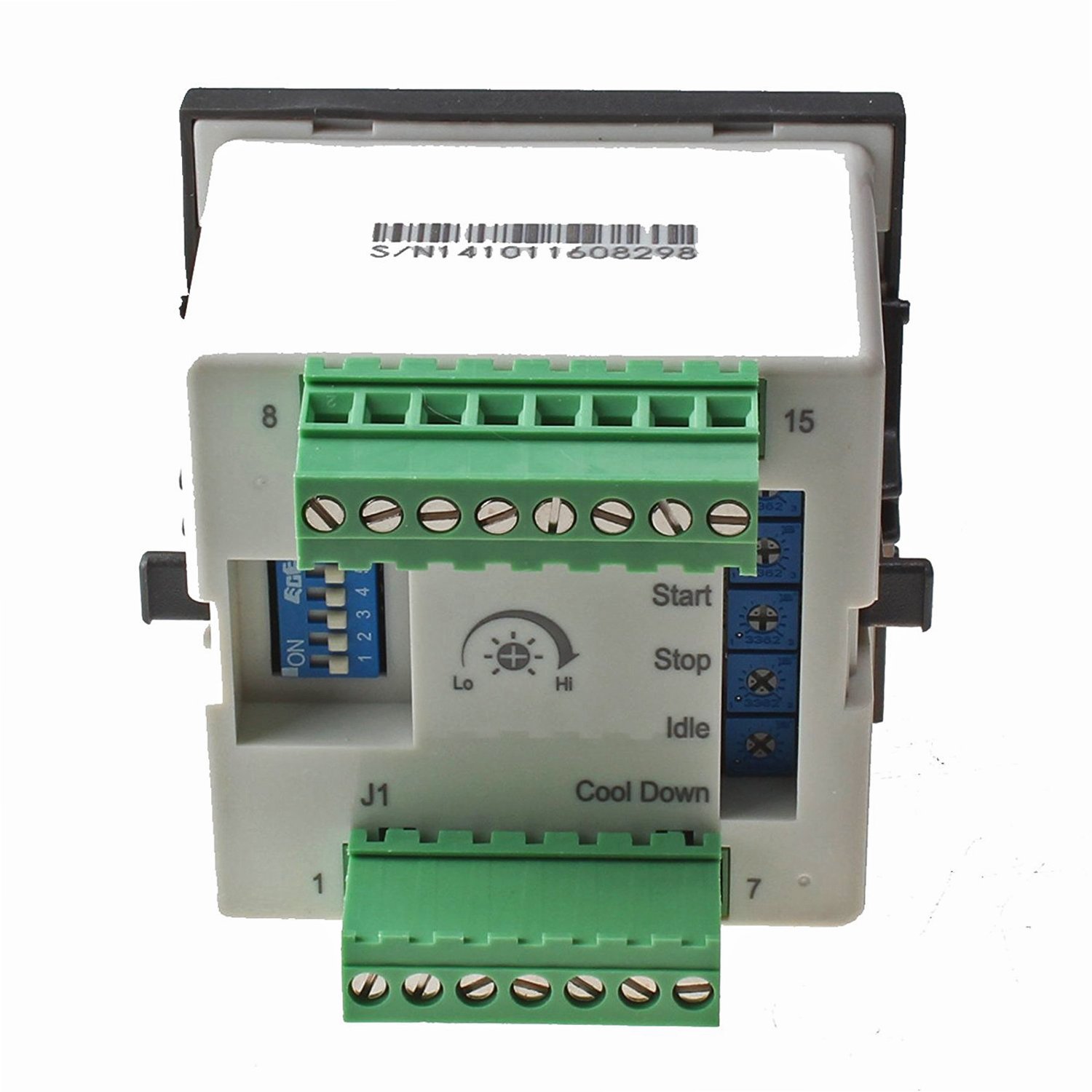

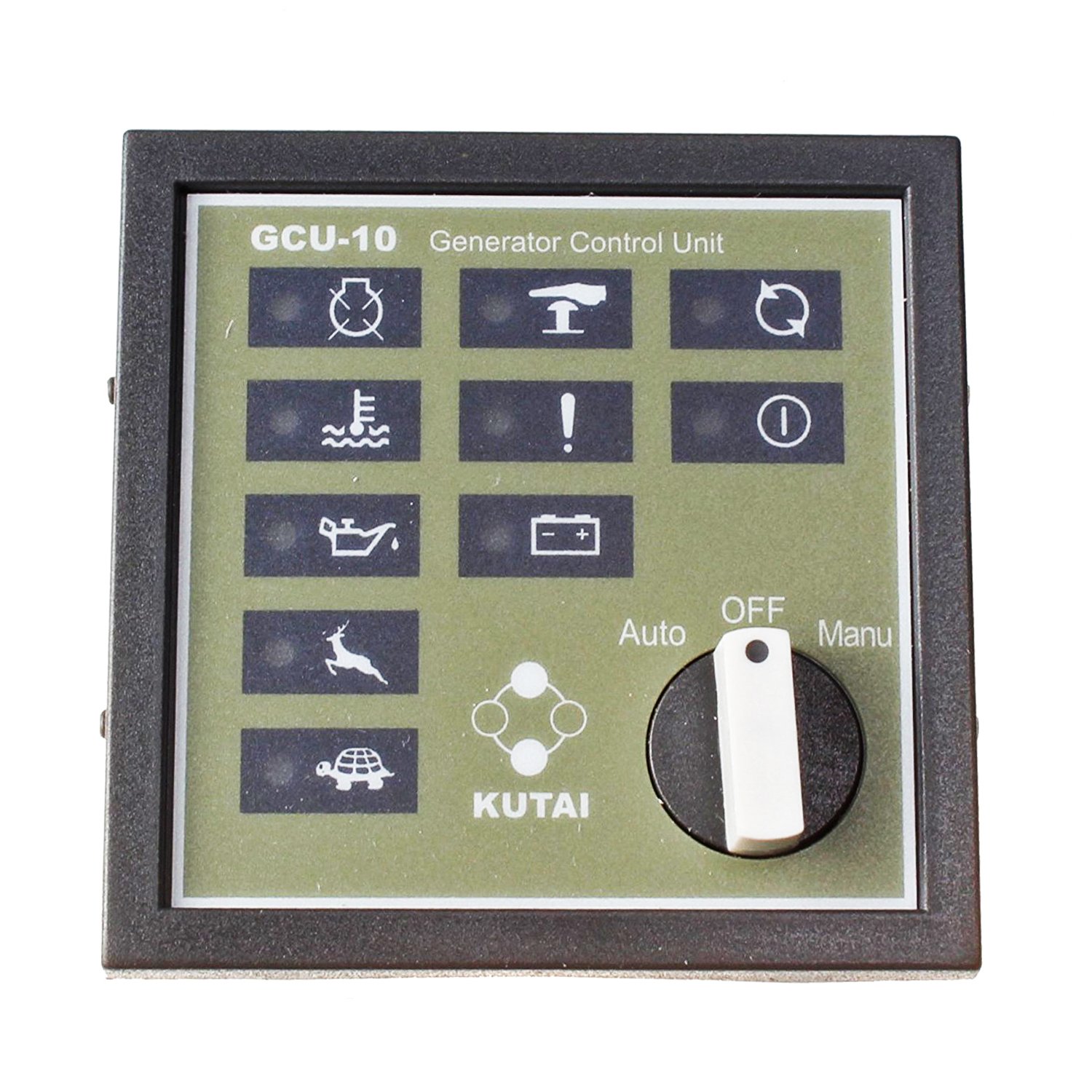

GCU-10 Generator Control Unit is an universal economical programmable genset controller. Equipped with high illuminating LED with universal graphical interface helps to notify the operator the generator status. Optional relay moduleGCU-11R (12V/24V) helps to simplify the wiring and connection process. Features: Microprocessor Based Design Universal LED Graphic Interface, Displays Generator Status and Failures Modular Design, Quick Installation Programmable Engine & Generator Controls Adapts Easily To Any Type Generator Set. Waterproof Front Panel With UV Protection Provide IDLE control For Elec. Governors Five Adjustable Time Delay Potentiometers Five DIP Switches For Specification Setting

DC Supply9.0 to 36 VDC

Alternator Input RangeVoltage 5~300 VDC,Frequency 50~60 Hz

Fuel Solenoid Signal Output5 Amp @ 12/24 VDC

Power ConsumptionUnder 3 VA on Auto

Operation Temperature -20~70 °C
