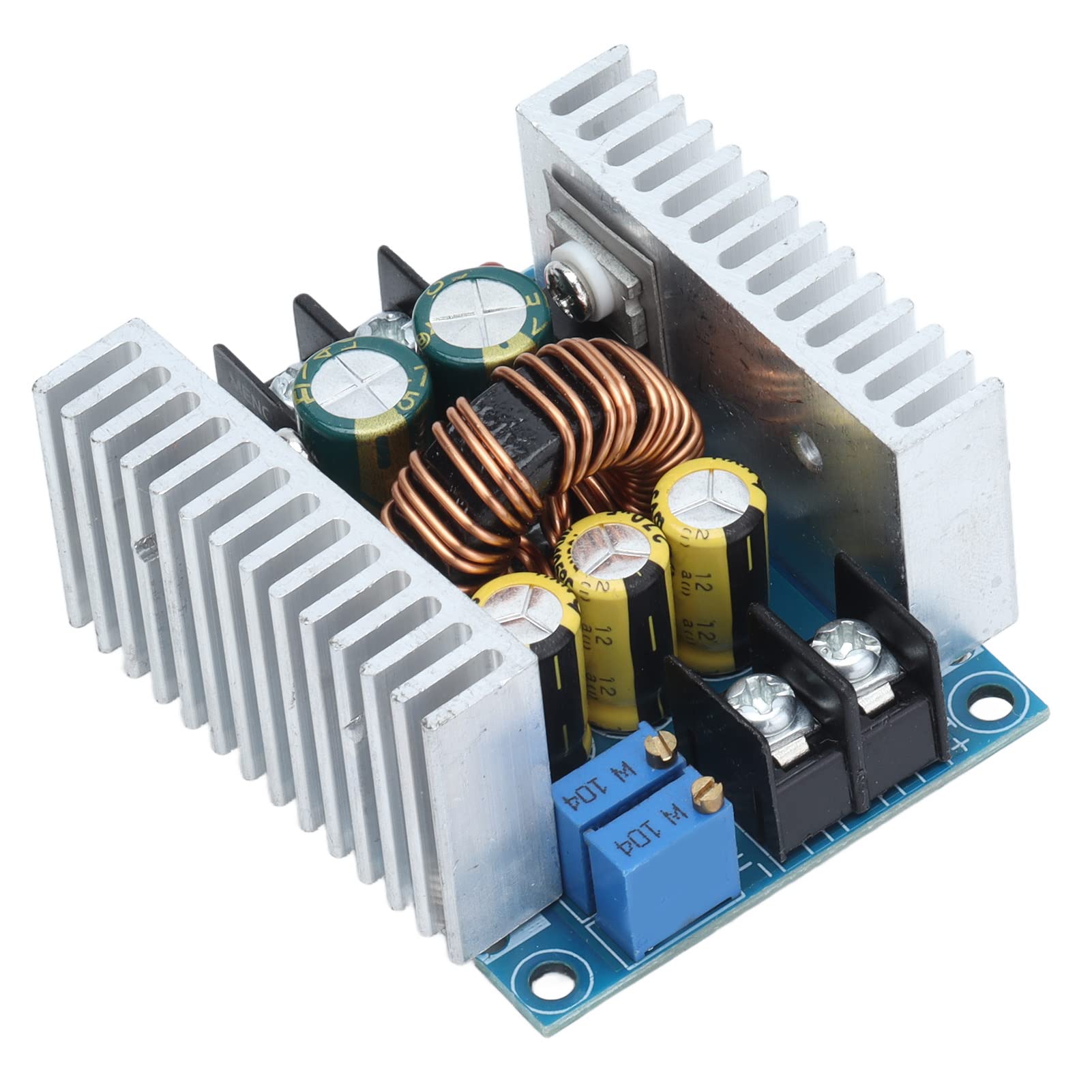

Pinsofy 6V-40V Adjustable Dual MOS Tube Voltage Converter Board - High Efficiency DC-DC Step Down Module for DIY Electronics, Solar Projects & LED Lighting

Feature:1. Volt Board: This DC to DC converter module has a wide input voltage range from 6V to 40V, very useful.2. Accurate to Set: Ensuring high accuracy in setting output voltage and providing constant current as well.3. Double MOS Tube: Equipped with 75V 80A high current dual MOS tube, works with stability and reliability.4. High Efficiency: Measured at 20A, the converter can transform 24V to 12V, and the efficiency can get to 96%.5. Reliable Output: Use high frequency and low impedance electrolytic capacitors, with low ripple and stable output power.Specification:Item Type: ConverterMaterial: PCBPurpose: DC DC ConverterInput Voltage: DC6-40VOutput Voltage: Continuously adjustable (1.2-35VDC) for a long time below 32V (applicable to applications where the input voltage is higher than the output voltage can not be boosted). Output Current: Maximum 20A, within 15A for a long time (when the power tube temperature exceeds 65 degrees, please add a fan to dissipate heat, please derate for high voltage output). Current Limit Range: 0.2-20A (adjustment), then the module exceeds 65 degrees, please add a fan. Minimum Voltage Difference: 3VWorking Frequency: 150KHZConversion Efficiency: Up to about 96%, the efficiency is related to the voltage difference and the use environment. Output Ripple: Ripple around 50mV (no noise) 20M bandwidth (for reference only) 24V input measured. Working Temperature: -10℃ to +75℃ (Please pay attention to the temperature of the power tube in actual use, and if the temperature is too high, please strengthen the heat dissipation or derate the use). Potentiometer Adjustment Direction: clockwise (increase), counterclockwise (decrease). Output Short Circuit Protection: Yes (instantaneous protection) constant current (currently set constant current value can not be short circui

Volt Board: This DC to DC converter module has a wide input voltage range from 6V to 40V, very useful.

High Efficiency: Measured at 20A, the converter can transform 24V to 12V, and the efficiency can get to 96%.

Reliable Output: Use high frequency and low impedance electrolytic capacitors, with low ripple and stable output power.

Double MOS Tube: Equipped with 75V 80A high current dual MOS tube, works with stability and reliability.

Accurate to Set: Ensuring high accuracy in setting output voltage and providing constant current as well.
