48V 1800W High Speed Brushless DC Motor & 32A ESC Controller Kit - Perfect for eBike, ATV, Go Kart, Moped & DIY Electric Vehicle Projects | Powerful Upgrade for Off-Road & Commuter Applications

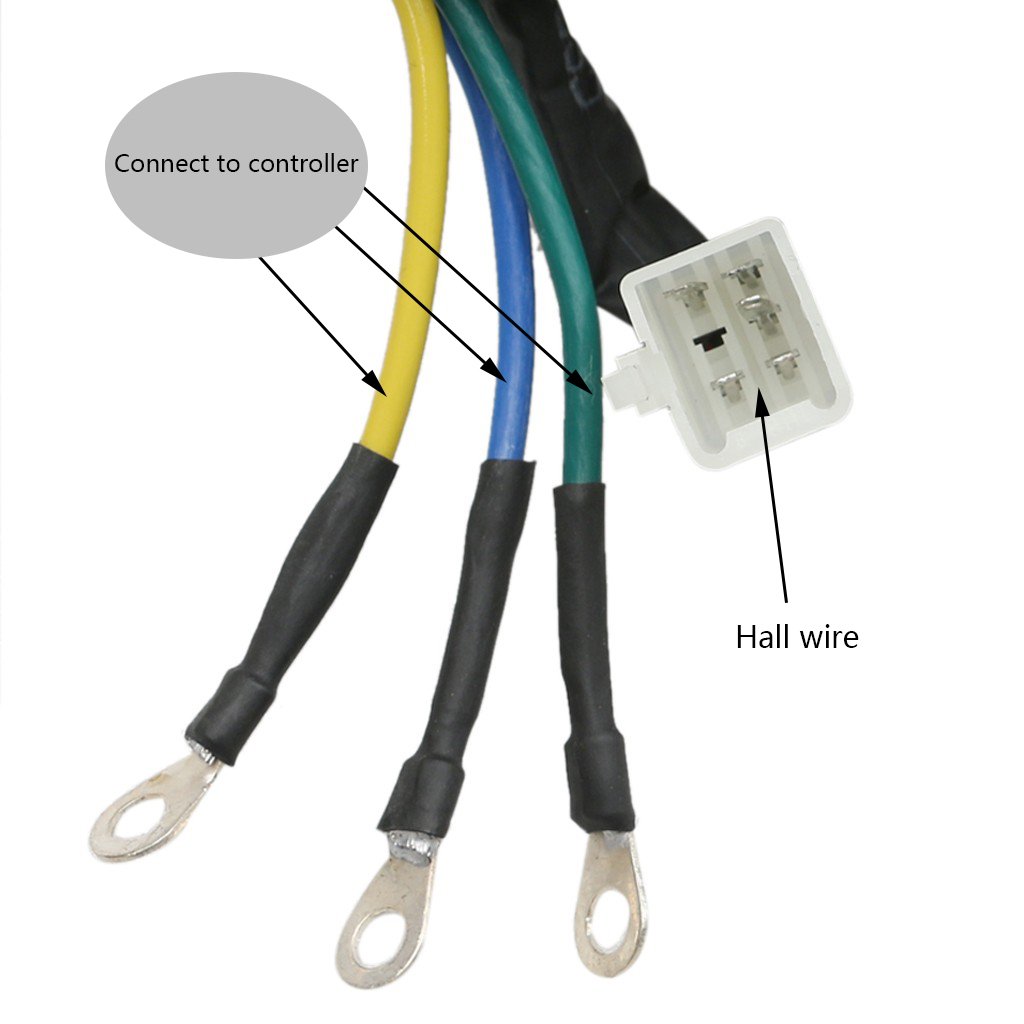

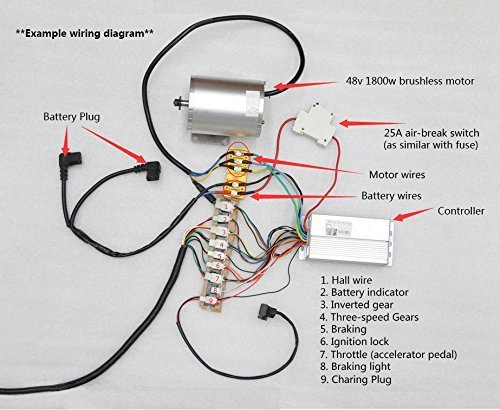

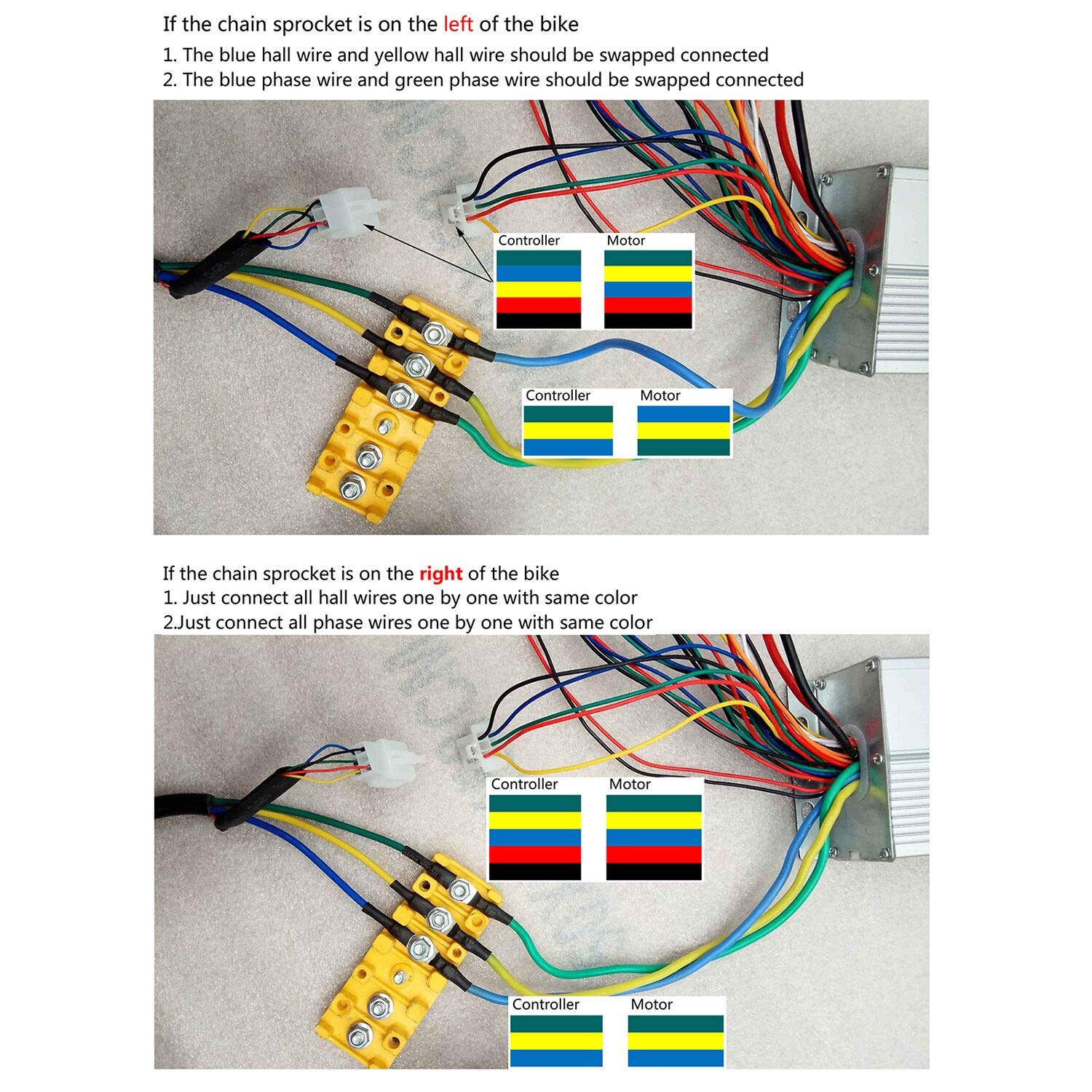

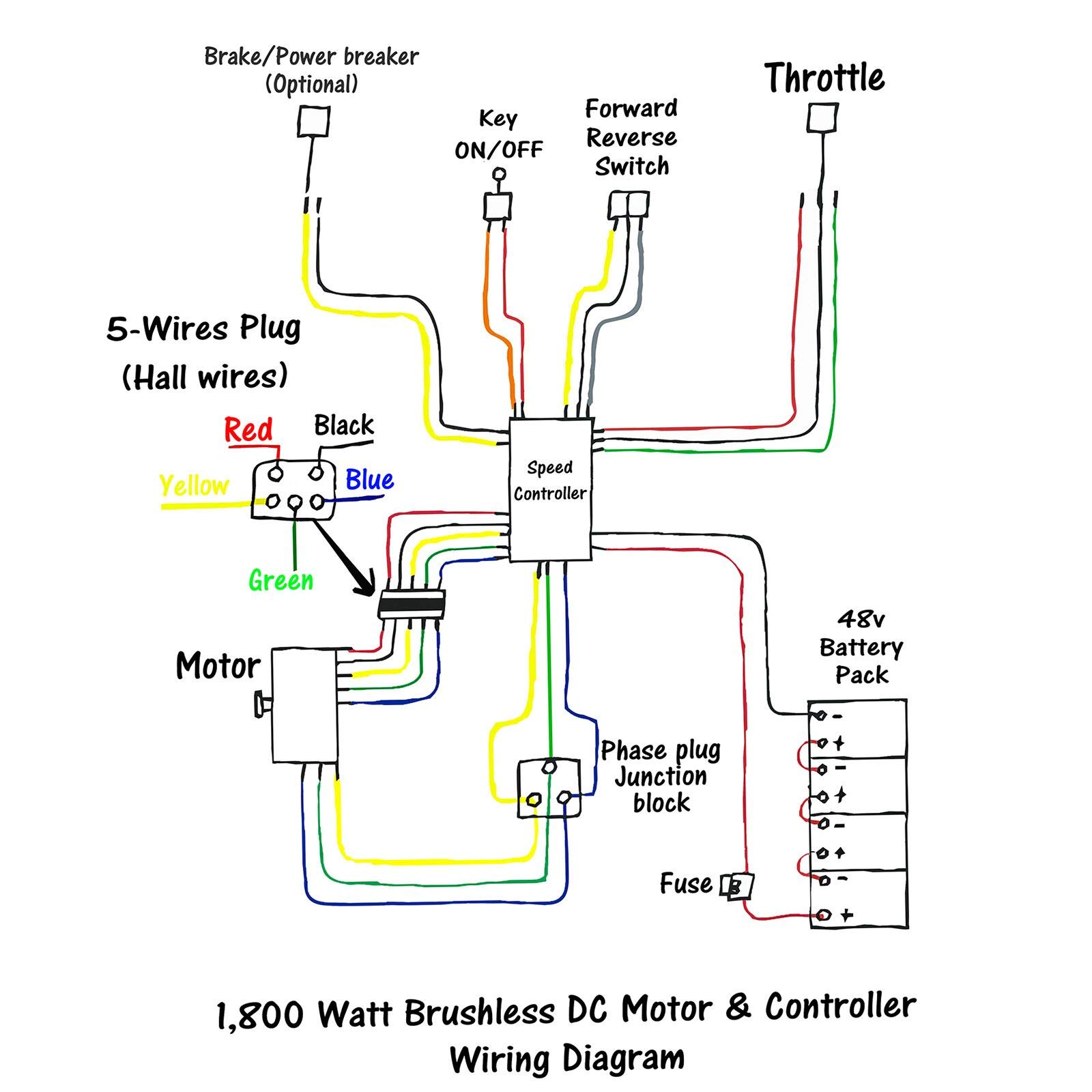

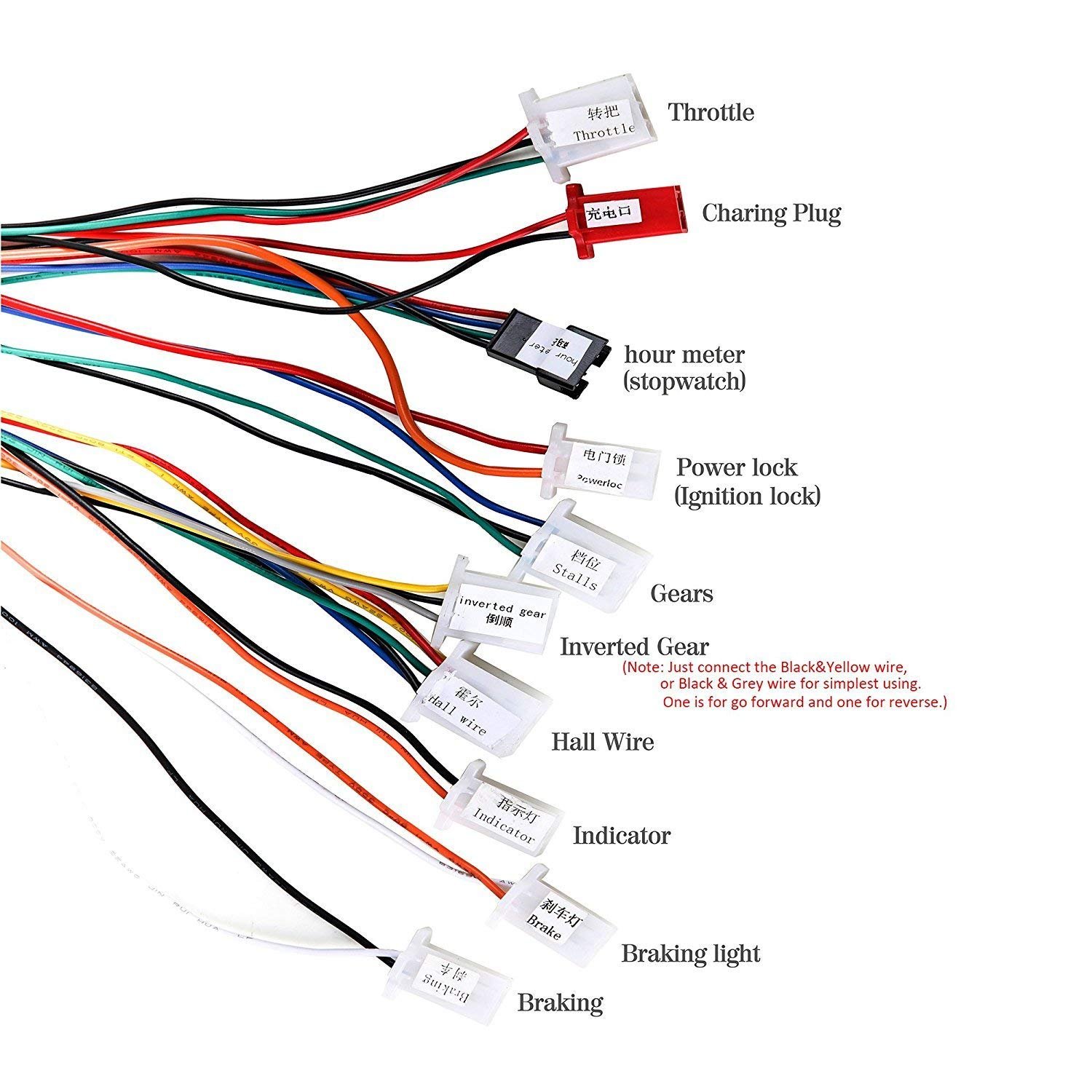

Why choose Brushless motor?1. Less electrical and electromagnetic noise2. Long lifespan: No brushes to wear out, around triple lifespan as brushed motor3. Low maintenance: No brushes to replace4. Powerfrugal: Power consumption is 1/3 of brushed motor5. High efficiency: Brushless motors are typically 85-90% efficient whereas brushed DC motors are around 75-80% efficient.Wiring:Battery :Thick Black (Power Negative) /Thick Red (Power Positive)Motor:Thick Yellow (Motor Negative) /Thick Blue (Motor Positive)Ignition Switch :Thin Red(VCC)/Thin BlueIndicator : Thin red (Indicator power output) /thin black (indicator negative)Brake :thin yellow (Brake signal)/thin black(Negative Power)Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power)Charge Port : Thin red (charge input power Positive) /thin black (Power negative)Brake Light: Thin red (power Positive) /thin black (Power negative)The controller have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.

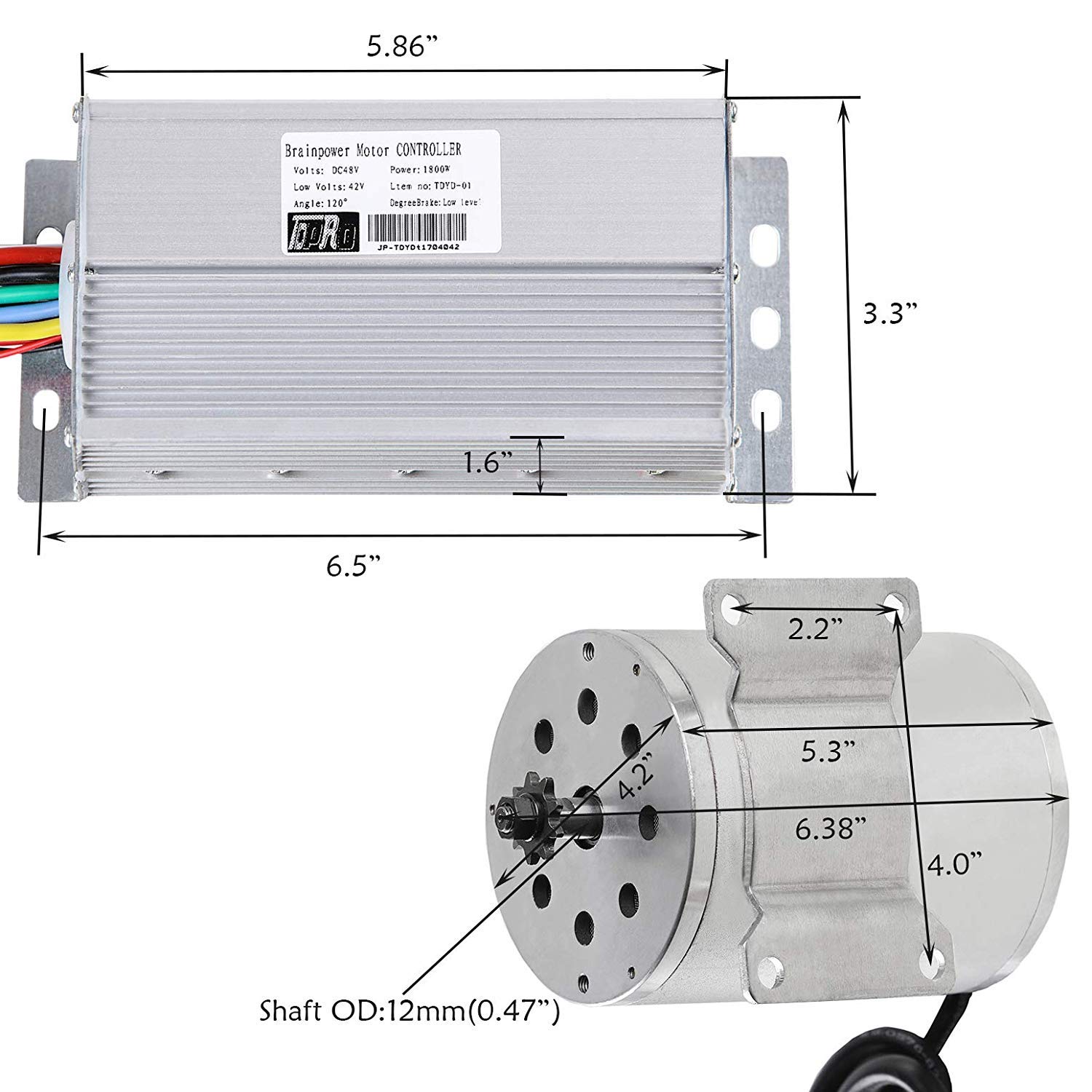

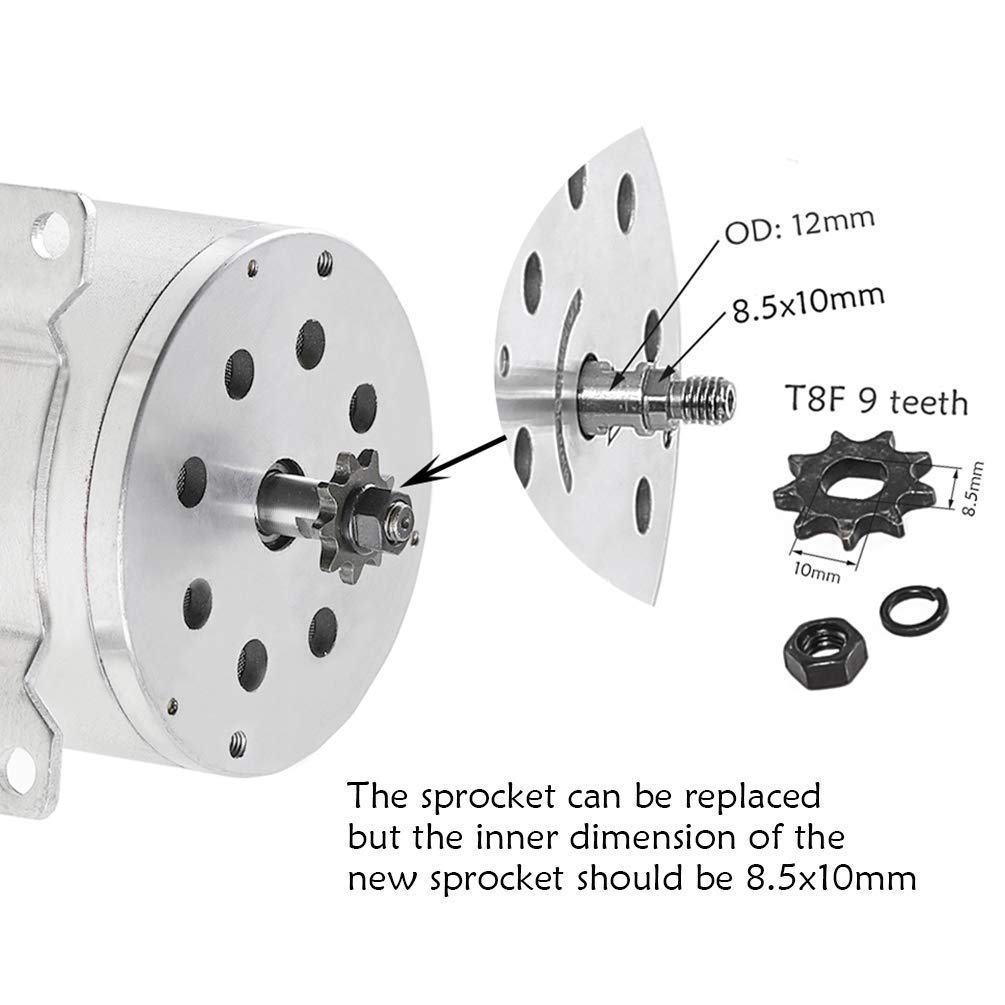

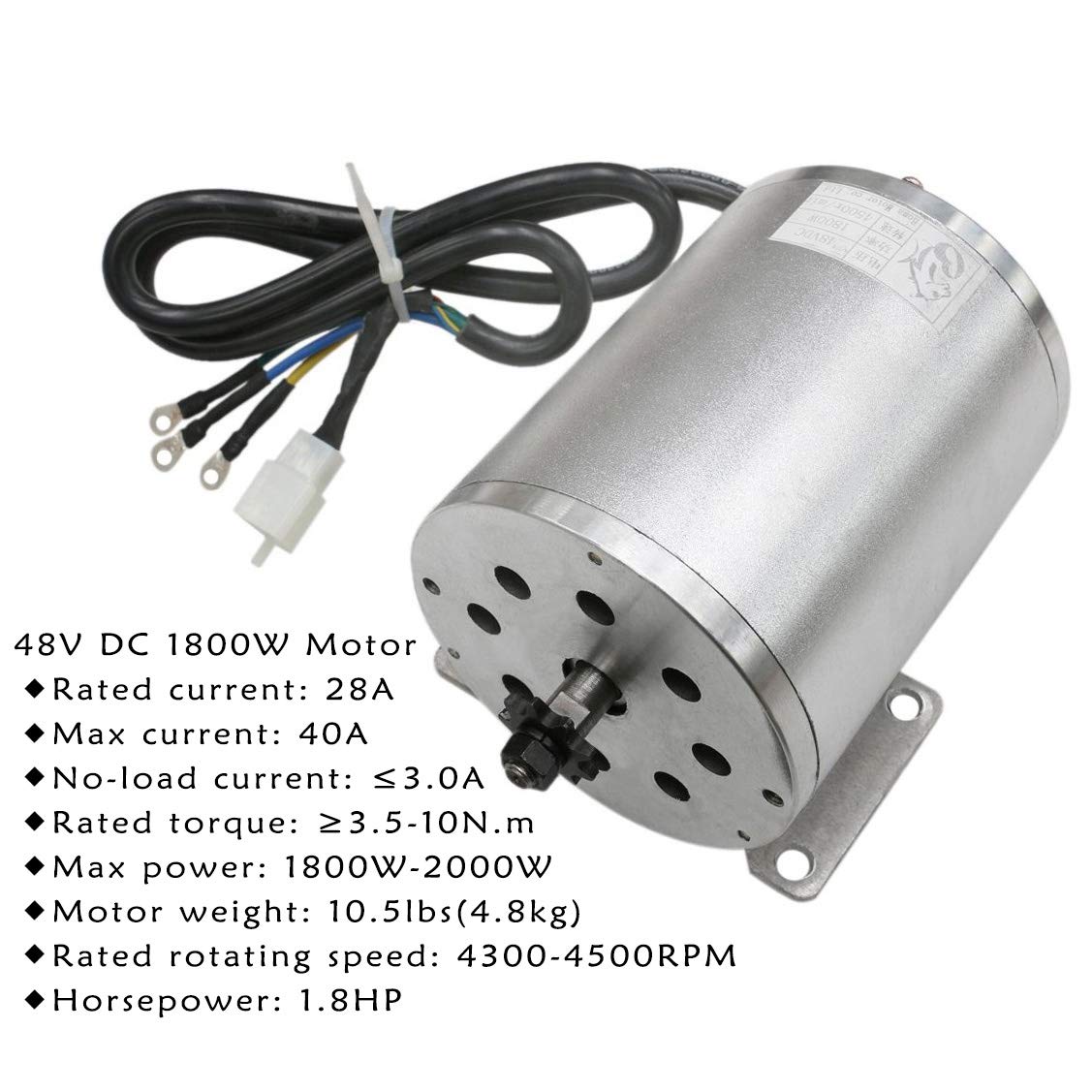

Motor Rated voltage 48V DC, Output 1800W, Rated speed 4500 RPM, Sprocket：T8F 9T, Peak efficiency 80%, Horsepower 1.8HP

Controller Rated voltage 48V DC, Current limit 32A, Conversion efficency 95%

Easy to hook up, Less electrical and electromagnetic noise, much more quiet than older spindle

Suitable for go karts, scooters, e-bike, atv, motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes

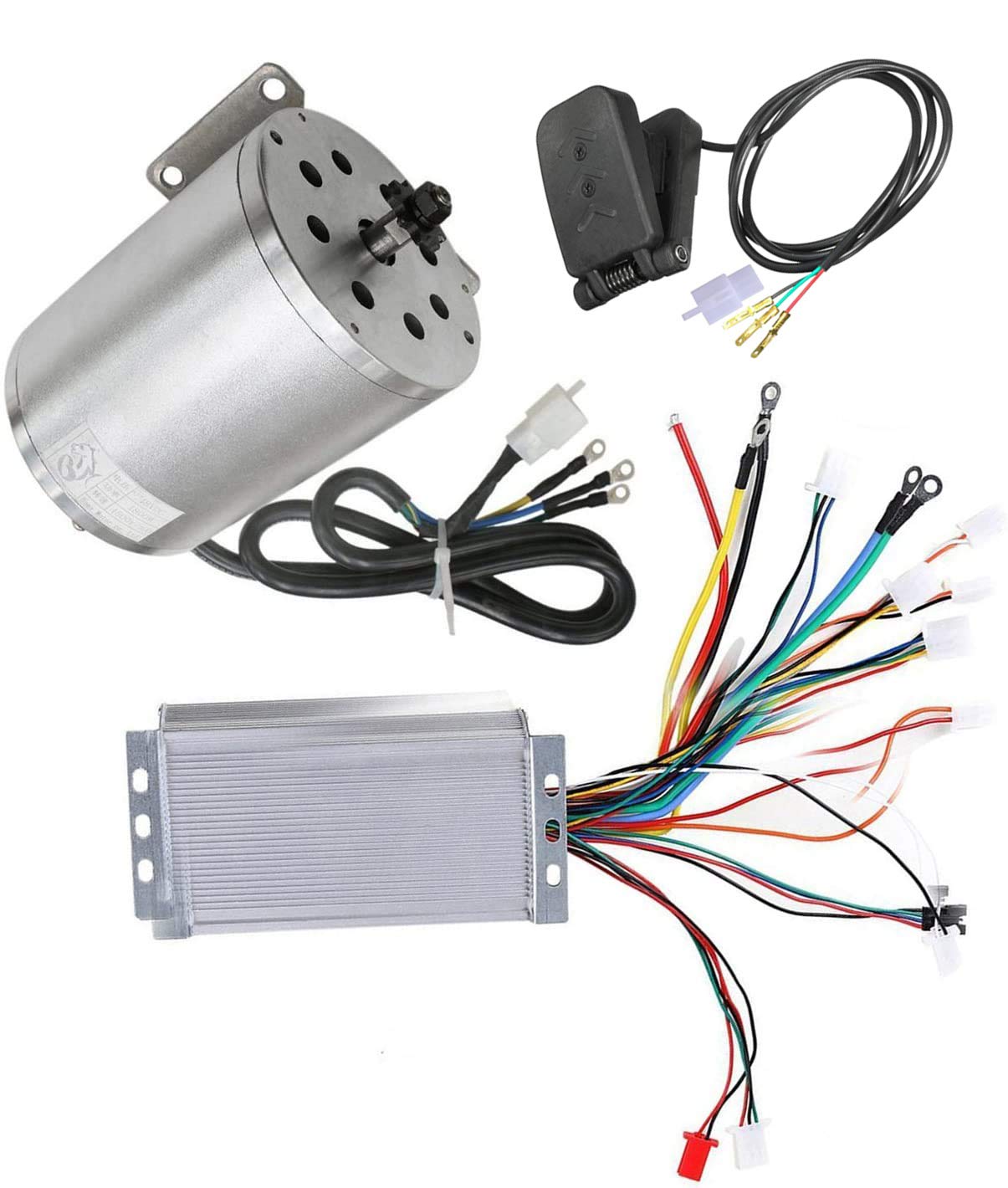

Package include 1 x motor + 1 x controller + 1 x accelerator pedal
