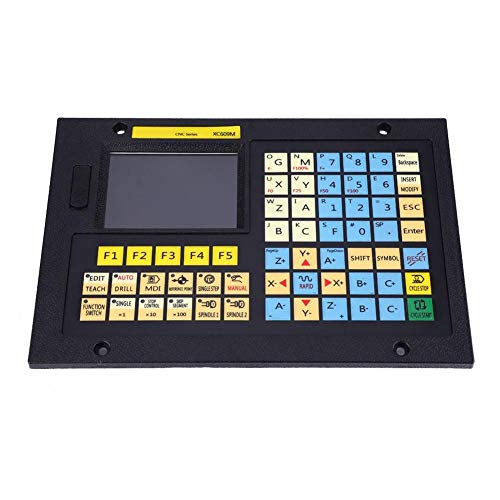

XC609M CNC Control System Controller Board for Milling Machine - 2 Axis High Strength Linkage - Perfect for Industrial Metalworking & Precision Machining Operations

Auxiliary Function: M2 Digit, UserDefined M Code, Manual/Mdi/ Automatic Control Spindle Forward, Reverse, Stop;Control Coolant Start And Stop;Control Lubrication Start And Stop, Etc. Main Spindle Function Main Spindle Function: Double Spindle Thread Tapping: Support Spindle Analog Output: Yes, Double Spindle Cutter Function Cutter Function: It Supports CenterToCenter Tool Setting And ThreePoint CircleToCenter Tool Setting Cutter Compensation Memory: 9999.999 ~ 9999.999,99 Cutter Compensation: Spindle Length Compensation Edit Operation Editing Function: Parameters, Diagnosis StepByStep Input, Program Editing, Mdi MultiSegment Execution Storage Capacity: 128M Number Of Stored Programs: N Display Of Program Name: Chinese, English, Digital, Combination Program Line Lookup: Yes Skip Optional Segment: Yes Program Switch: Yes Display Display: Chinese, English Processing Time, Number Of Parts Display: Yes Spindle Speed, M/ S Instruction: Yes Product List: 1 * Control System 4 * Terminal And Screws (Set)

★Using 3.5-inch color wide-screen LCD, resolution 480X320, fit for Win interface style.Equipped with 5 soft function keys, easy to learn and operate.Provides rich display interface of the parameter classification, the alarm log, the system diagnosis, facilitating the debugging maintenance

​★Based on 32-bit microprocessor, full linkage, 0.001 mm interpolation accuracy, and speed is 12 m/ min.It can run 3 programs at the same time (1 main program,2 sub-programs), convenient processing, feeding, cutting procedures

★Standard G instruction, compatible with FANUC system instruction.40 kinds of G instructions, support drilling cycle, tapping cycle.Part program full-screen editing, built-in 128M massive program space, can store N parts programs

★With USB interface, support file reading and writing, data backup of USB flash drive.Input 24 (can be extended to 96) points, output 24 (can be extended to 96) points (user-defined), flexible and convenient.Chinese/ English operating interface, complete help information, more convenient operation

★The system adopts the acceleration and deceleration control before interpolation.Support multi-level operation rights, convenient equipment management, time-limited system locking function.Support third-party software G code files
