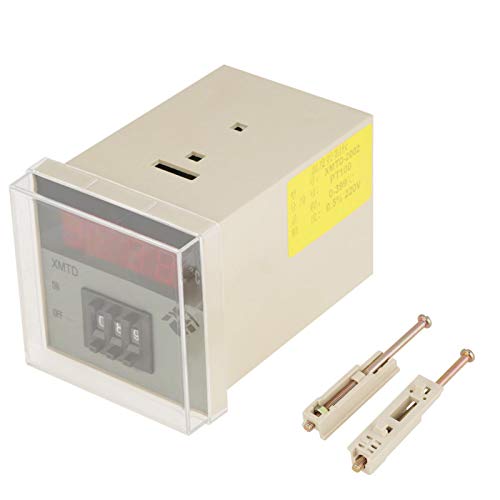

XMTD-2002 PID Digital Temperature Controller - Microcomputer Thermostat 220V (0-399°C) for Industrial Ovens, Incubators & HVAC Systems

Specifications: Model: XMTD-2002 Measurement Range: 0-399℃ Measurement Accuracy: 0.5 Accuracy: Class 1.0, set and display ≤±1.0%F.S ± 1 digit Cold End Compensation Error: ≤±2℃ Temperature Coefficient: ≤0.05%/℃ Control Point Non-sensitive Area: <0.5% Proportional Control: Proportional with 2~5%, cycle 30S±10S (zero-crossing pulse cycle is about 1~2S) PID Regulation: Output 0~10mA (or 4~20mA), load resistance 800 ohms (or 250 ohms)Pulse output amplitude is greater than 3V, width is greater than 40us zero-crossing pulse or phase shift pulse. Contact Capacity: AC250V/5A (resistive load) drive SSR; Drive current is greater than 15mA, no-load voltage is greater than 9V, cycle about 2S. Over-limit Alarm: Input more than set value ± 2-5% of full range Working Power Supply: 220V±10%, 50Hz, power consumption is less than 5W Operating Environment: 0~60℃, ≤85%RH indoor with no corrosive gas Size(L*W*H): 10.5*7.2*7.2cm/4.1*2.8*2.8in Weight: 351g(approx.) Package Includes: 1 x Temperature Controller 1 set x Screw Accessories

XMT series digital display temperature controller has high accuracy and good reliability,

It is easy to install, and has good shock resistance and strong anti-interference ability.

It can measure and automatically control temperature ranging from 0℃ to 399℃.

If used with corresponding sensor, it can also be used for displaying and controlling pressure, flow, liquid level.

Complete control method, widely used in plastics, rubber, packaging, food machinery, metallurgy, chemical industry, and aquaculture, etc.
