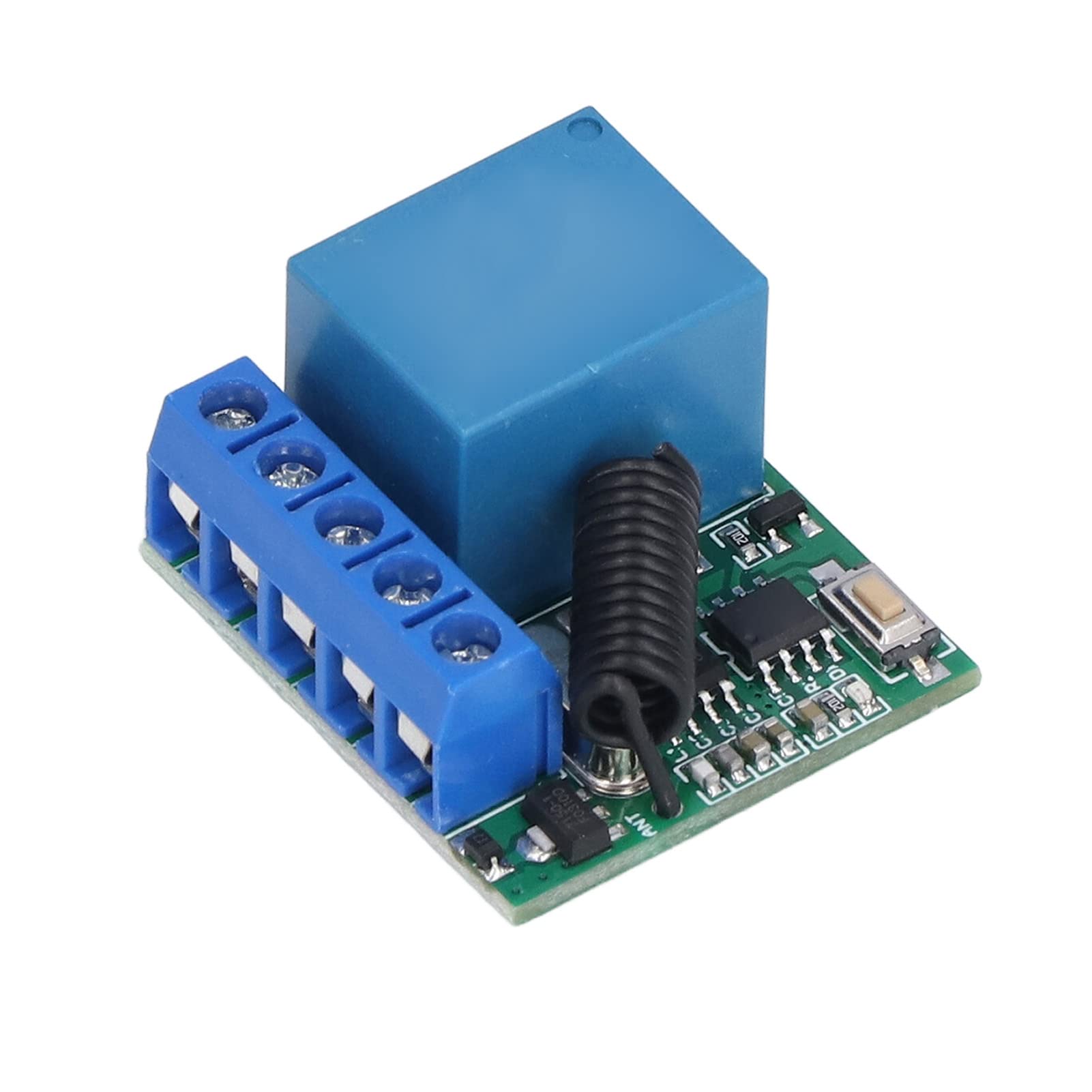

Wireless Controller Module - 24V Remote Control for Smart Home Automation, Easy to Learn & Use | Perfect for Lighting, HVAC, and Security Systems

Feature:1. Jog Mode: In jog mode, press the button and the relay is closed, release the button and the relay is disconnected. Press the button once, after releasing it, the red light flashes twice to enter the jog mode.2. Self Locking: In self locking mode, press the button once, the relay is closed, and press the button again, the relay is disconnected. Press the button twice in quick succession. After releasing it, the red light flashes 4 times to enter the self locking mode.3. Easy Learning: Press the button 4 times in quick succession. After releasing it, the brightness of the red light will increase and enter the learning mode. Press the button of the remote control to be learned and do not release it until the red light flashes and learning is complete.4. To Data Clear: Press the button 8 times in quick succession. After releasing the button, the red light flashes 6 times, the flashing is completed, the data is successfully cleared, and the remote control learned before will no longer work.5. Learning Module: This module can learn up to 50 sets of remote controls. If there are more than 50 sets, it will cover the remote control learned earlier.Specification:Item Type: Remote Control ModuleWorking Voltage: 24VBoard Size: Approx. 31 x 29 x 17mm / 1.22 x 1.14 x 0.67inShell Size: Approx. 39 x 36 x 25mm / 1.54 x 1.42 x 0.98in (excluding protruding parts)Package List:1 x Remote Control Module1 x ShellNote:1. This module only learns the address codes and data codes. If it is found that the remote control that has not been learned also enables, it is likely that the address and data codes are the same. You can modify the address codes or data codes of the remote control and then learn again. 2. In the learning process, it is possible to learn clutter. If you find that a certain channel cannot be controlled, just re learn.

Easy Learning: Press the button 4 times in quick succession. After releasing it, the brightness of the red light will increase and enter the learning mode. Press the button of the remote control to be learned and do not release it until the red light flashes and learning is complete.

Easy Learning: Press the button 4 times in quick succession. After releasing it, the brightness of the red light will increase and enter the learning mode. Press the button of the remote control to be learned and do not release it until the red light flashes and learning is complete.

Learning Module: This module can learn up to 50 sets of remote controls. If there are more than 50 sets, it will cover the remote control learned earlier.

To Data Clear: Press the button 8 times in quick succession. After releasing the button, the red light flashes 6 times, the flashing is completed, the data is successfully cleared, and the remote control learned before will no longer work.

Self Locking: In self locking mode, press the button once, the relay is closed, and press the button again, the relay is disconnected. Press the button twice in quick succession. After releasing it, the red light flashes 4 times to enter the self locking mode.

Jog Mode: In jog mode, press the button and the relay is closed, release the button and the relay is disconnected. Press the button once, after releasing it, the red light flashes twice to enter the jog mode.
