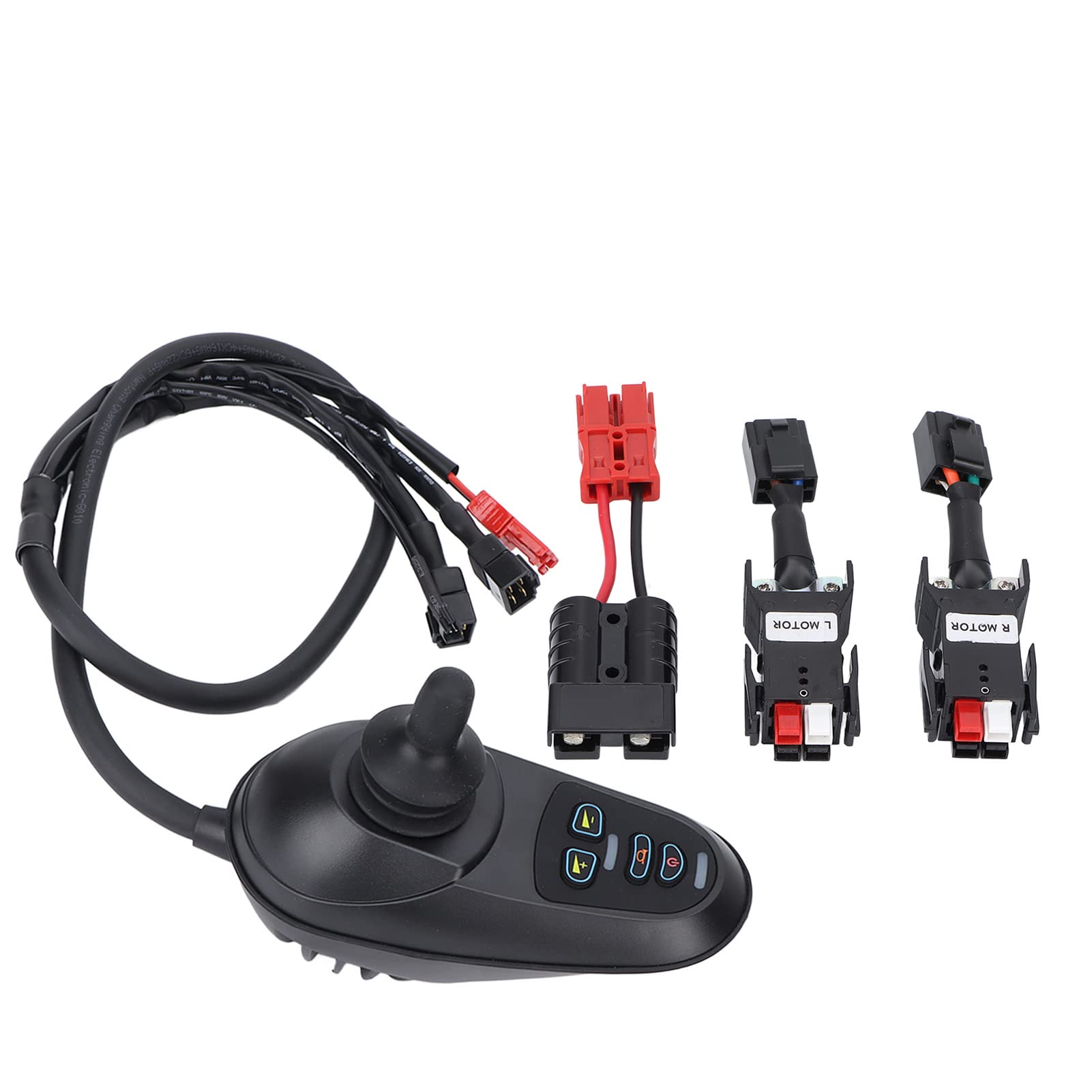

High-Speed Waterproof Wheelchair Joystick Controller - Universal Compatibility for Electric Wheelchairs | Ideal for Outdoor Use, Rainy Weather & Daily Mobility

Specification:Item Type: Joystick ControllerMaterial: ABSBrake Voltage: 24VDCBrake Current: 300-3000mACharging Current: 6A MaximumWaterproof Grade: IPX5 electronic equipmentOperating Temperature: -25°C to +60°CStorage Temperature: -40°C to +80°Applicable Drive Motor Form: 24V DC brush motorScope of Application: Electric wheelchairs, intelligent robots, amusement equipment, bar cars, remote control car, monitoring and operation platforms for various mobile productsHow to Use:1. Power on/off: Press this key to turn on the power, the battery indicator light turns on, the controller system enters the startup procedure, press this key again to turn off the power, and it needs to be pressed for more than 0.5 seconds to prevent misoperation.2. Deceleration key: reduce the maximum speed of driving, press once to reduce the speed by one gear, and the speed is displayed as the current speed gear.3. Accelerator key: increase the maximum speed of driving, press once to increase the speed by one gear, and the speed will be displayed as the current speed gear.4. Joystick: Control the speed and direction of driving and parking. The direction of the joystick is the same as the direction of travel, and the joystick is naturally released (in the middle position) to stop running.5. Horn key: Horn whistle/buzzer beepPackage List:1 x Joystick Controller 1 x Manual 2 x Connector1 ConnectorNote:In order to avoid affecting the use of the product, the product should be careful not to perform too many transfers, which are prone to poor contact.

Professional: 0‑50A output current, suitable for various 24V brushed DC motors, good wear resistance, not easy to corrode, and safe to use.

Speed Change: The Joystick controller starts smoothly, accelerates and decelerates softly, and the speed change is without sudden stop feeling.

Good Compatibility: Joystick controller can be adapted to major wheelchair brands, with good compatibility, easy installation, and can be directly installed and removed.

Fast Heat Dissipation: The lower shell is all aluminum with heat dissipation , which has fast heat dissipation, anti collision and long service life.

High : EABS has the function of parking on the slope, it can stop when you let go, high , and the controller can adjust the speed.
