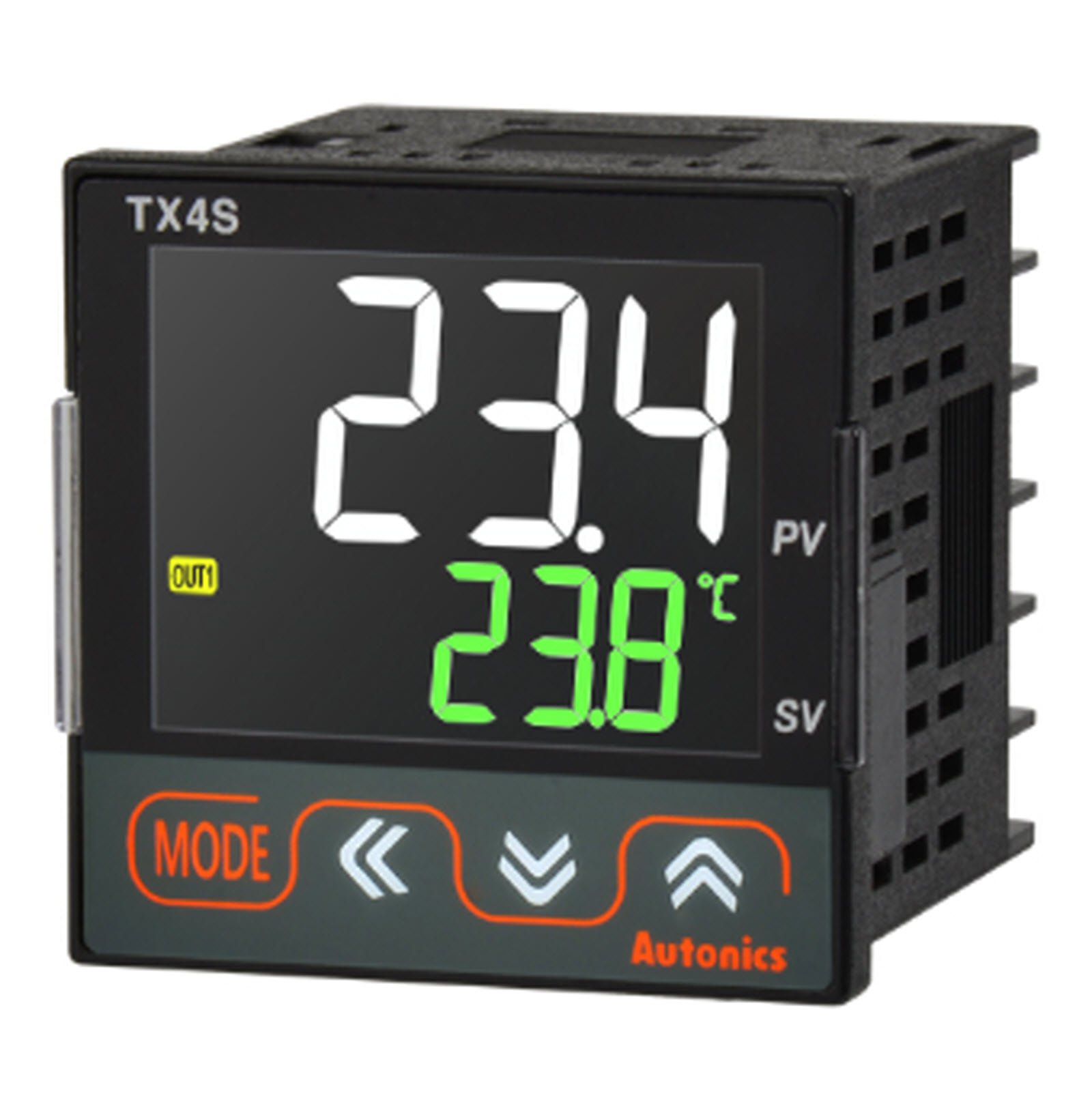

Autonics TX4S-A4C 48x48mm LCD Digital PID Temperature Controller 100-240VAC - Precise Industrial Process Control for Ovens, Furnaces & HVAC Systems

The TX Series temperature controllers feature easy-to-read LCD display with large, 15.3 mm white PV characters. The 11-segment displays used for PV and SV are useful for displaying alphanumeric characters. The temperature controllers also feature 50 ms high-speed sampling cycle and ±0.3% display accuracy. The TX Series also features a compact, space saving design with 45 mm depth. With a 30% reduction in rear-length size, the controllers offer installation flexibility in limited spaces. The temperature controllers also offer various output options including current output, transmission output and RS485 communication output, for application in various environment settings

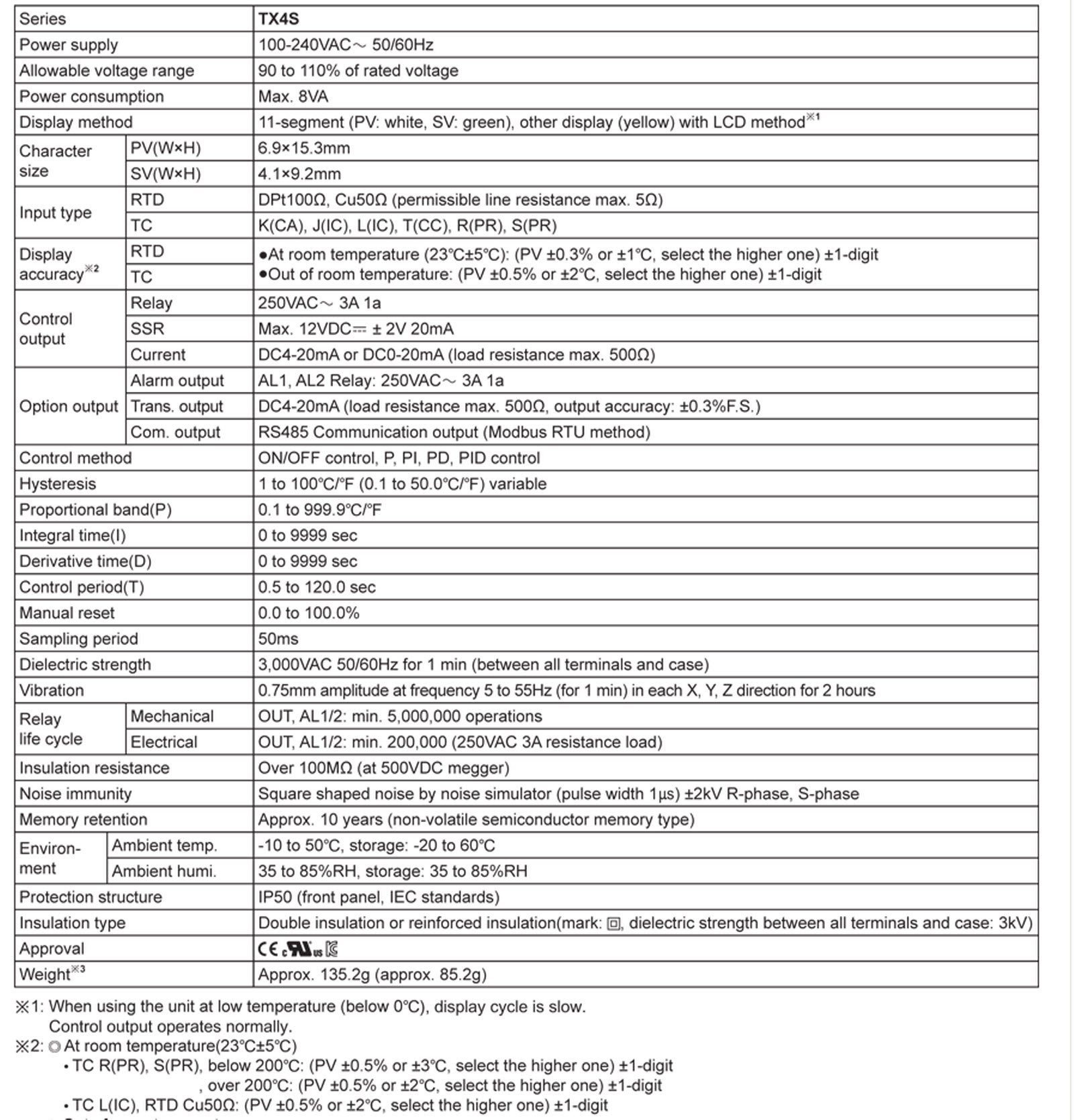

Display method 4-digit 11-segment LCD

Control method ON/OFF control, P, PI, PD, PID control

Sampling cycle 50ms

Control output Current(DC0/4-20mA) or SSR drive(12VDC ) [ON/OFF]

Power supply 100-240VAC~ 50/60Hz
