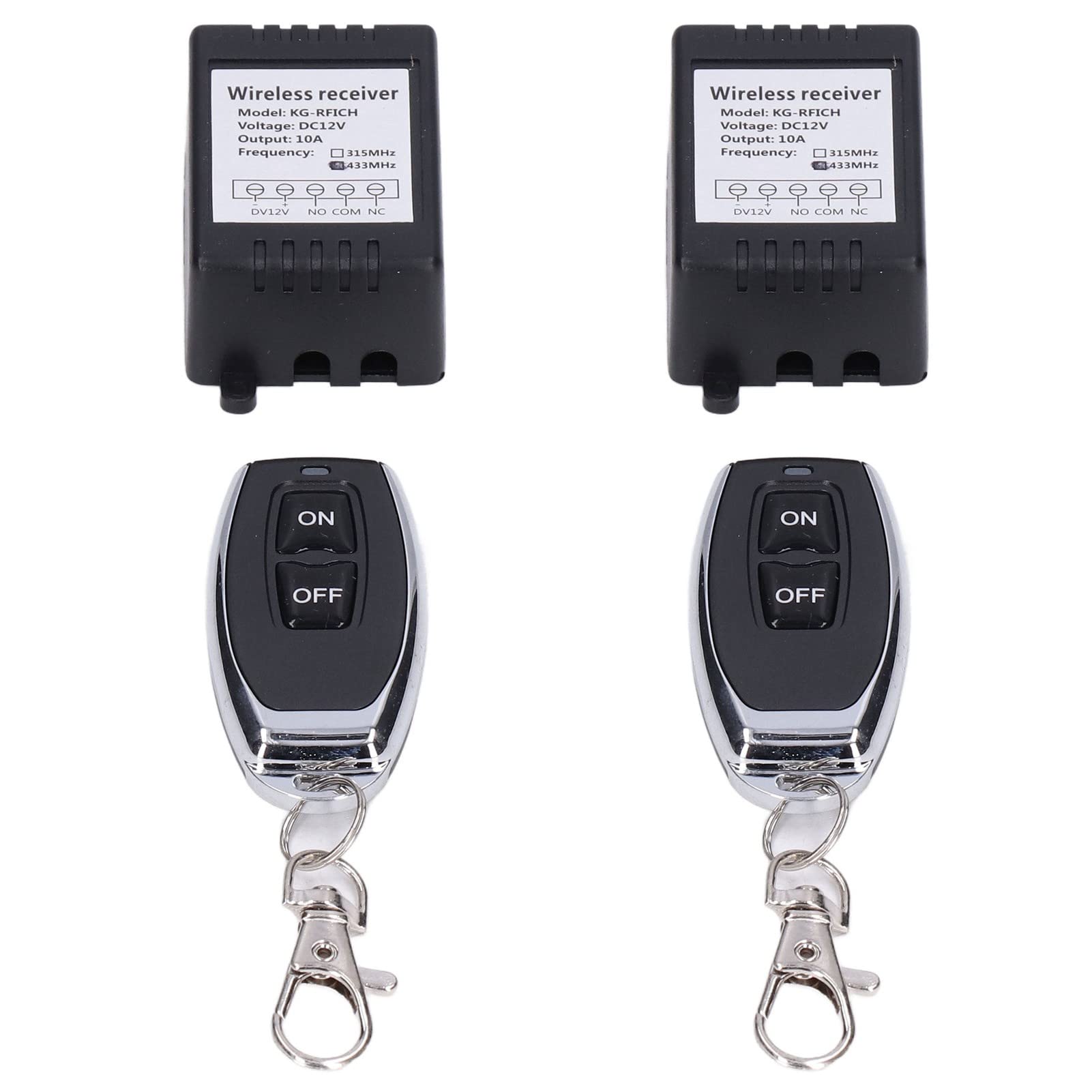

Feature:1. Easy Control: Has a long control distance up to 100 meters, the sensitive remote controller is also non directional.2. Working Mode: Working mode can be set to jog, self locking, interlocking, has a delay function as well, very useful.3. Wide Utility: Suits for LED light strip, alarm accessory, door opening button, lamp switch, modification and so on.4. Quick Coding: Convenient learning makes the coding easier, and the 1 button remote control defaults to self locking.5. Simple Carry: Light in weight and compact in size, both the storage and carrying are very convenient for daily use.Specification:Item Type: Remote Control ModuleModel: KG1201A+YK115X (ON OFF)Material: ABSRemote Control Battery: 1 x CR2016 button battery 50mah (built in battery). Working Voltage: DC12VQuiescent Current: 8mAWorking Frequency: 433MHzLoad Power: 1000WReceiving Sensitivity: -105dbmCoding Method: Learning TypeWorking mode: Jog, self locking, interlocking, delay. Modulation Method: ASKRemote Control Distance: Approx. 100meter / 328.08ft (open area without interference)How to Use: 1. Jog Learning Method: Press the control panel pairing button once, the LED indicator flashes once, and after the LED indicator lights up, press the remote control button that needs to be paired, and the control board LED indicator flashes 3 times in a row, indicating that the codes pairing is successful. 2. Self Locking Learning Method: Press the control panel pairing button twice in a row, the LED indicator flashes 2 times, after the LED indicator lights up, press the remote control button that needs to be paired, and the control board LED indicator flashes continuously 3 in a row, indicating that
