HQST 8FT 10 AWG Copper Tray Cable - Heavy Duty Solar Battery Connector for Charge Controllers & Power Systems | Perfect for RV, Marine, and Off-Grid Solar Installations

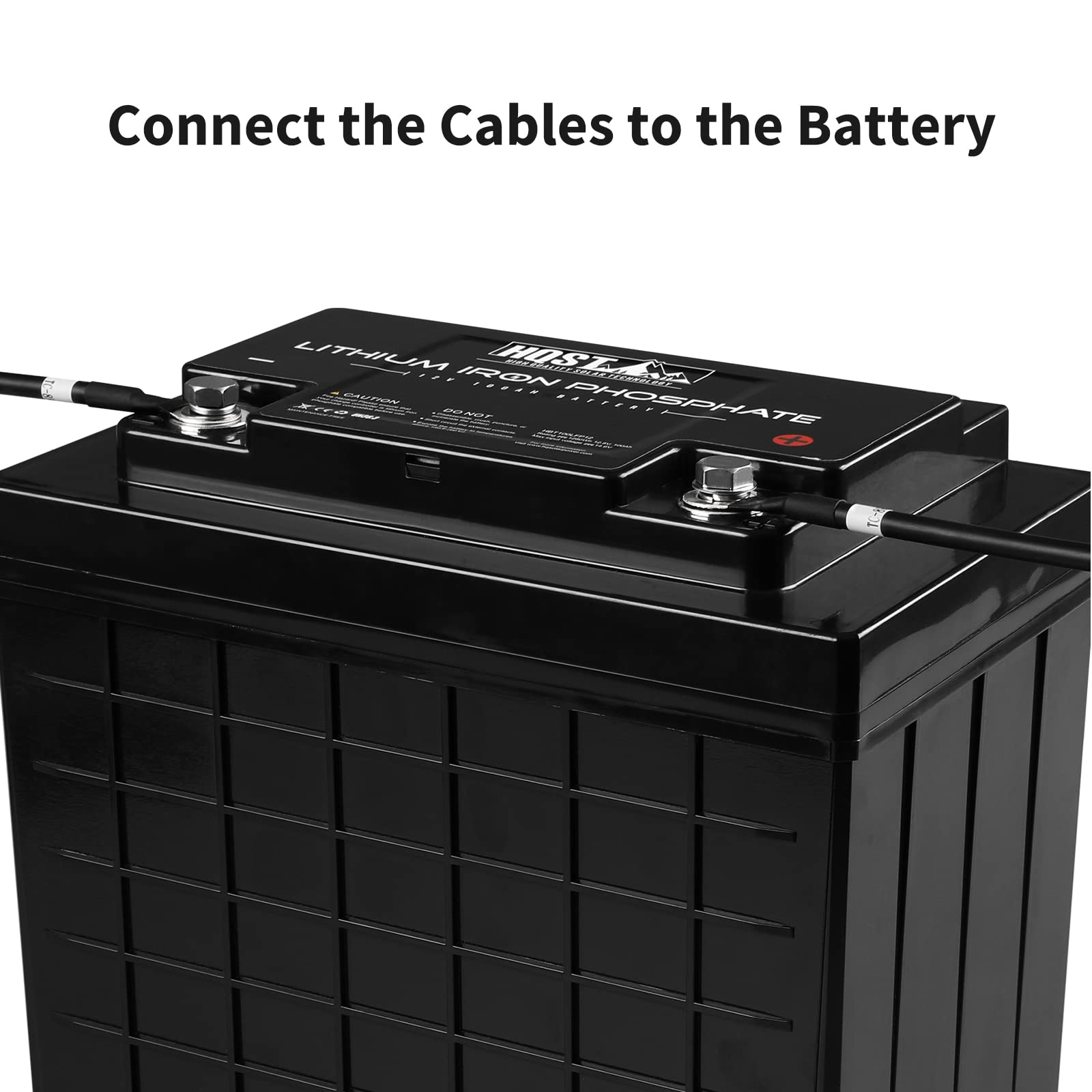

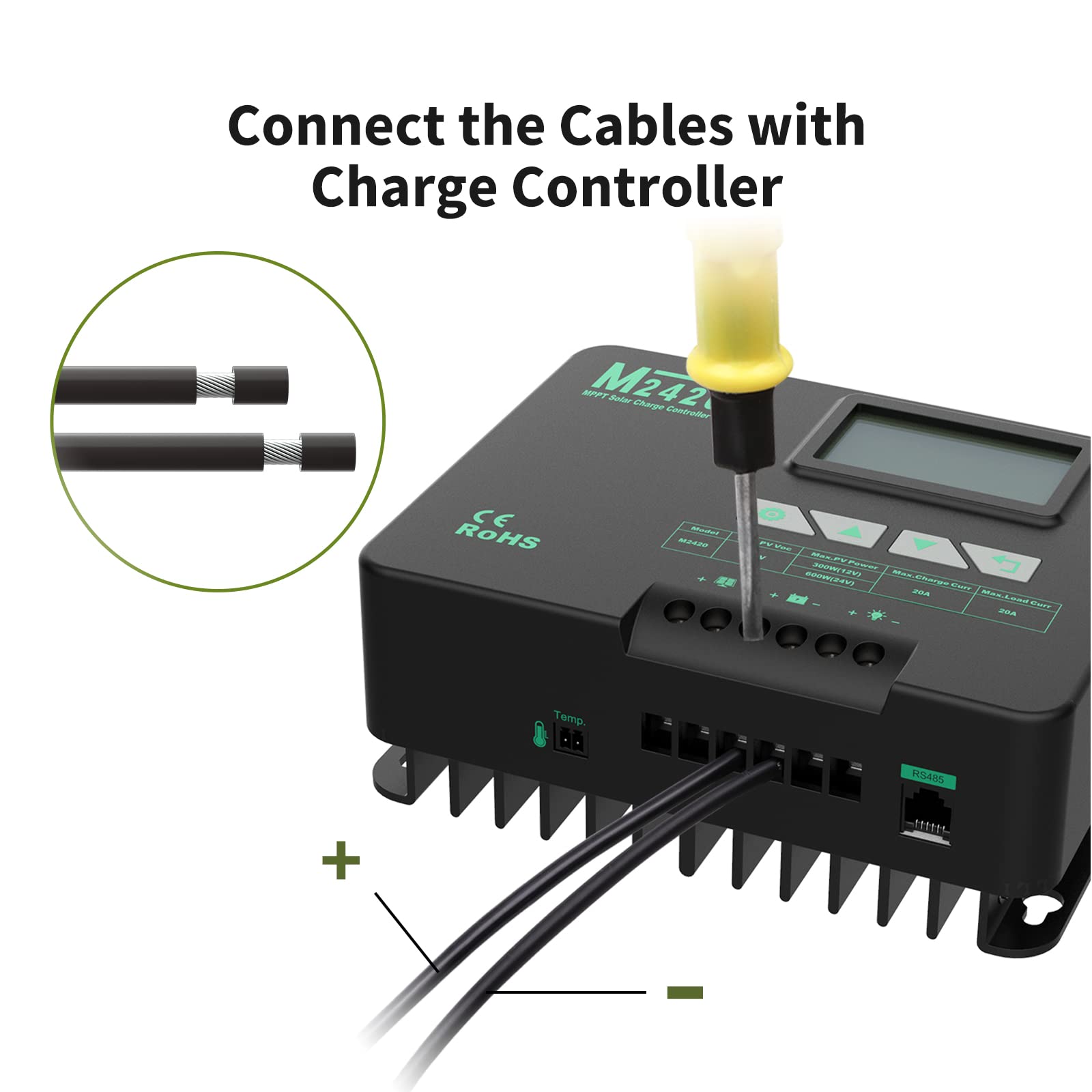

STEP 1 Materials & Tools Ready. Solar Charge ControllerBatteryBattery Cables Wire Crimper and screwsdriver STEP 2 Connect the Cable with Charge Controller. Insert the stripped end and fasten the terminal shut. All HQST Charge Controllers have the battery terminals labeled with a battery icon “BATT". STEP 3 Connect the Cables to the Battery. Connect the negative battery cable to the negative battery terminal and the positive cable to the positive terminal. STEP 4 Charge Controller Turn On Now. Check the installation instructions in your charge controller’s manual and set up the battery type correctly. STEP 5 Double Check All Your Connections. Make sure that none are loose. FUSE FAQ: Do I need to have the fuse between the charge controller and battery? A: When hooking up your HQST system, the best way to add protection is by using fuses or circuit breakers. Fuses and circuit breakers are used to protect the wiring from getting too hot and also protect all devices connected in the system from catching fire or getting damaged if a short circuit occurs. They are not necessary for the system to run properly, but we always recommend using fuses or circuit breakers for safety purposes. Adaptor Kit Solar Cable Extension Cable Double Cable Entry Gland Fuse Y Branch Connectors Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews 4.6 out of 5 stars 128 4.5 out of 5 stars 81 4.2 out of 5 stars 70 4.7 out of 5 stars 30 4.6 out of 5 stars 211 Price — no data — no data $8.49$8.49 — no data — no data Frequently Bought Together Connect Solar Panel and Charge Controller Solar Extension Cables Double Cable Entry Gland ANL Fuse with transparent holder For Parallel Connection Between Solar Panels

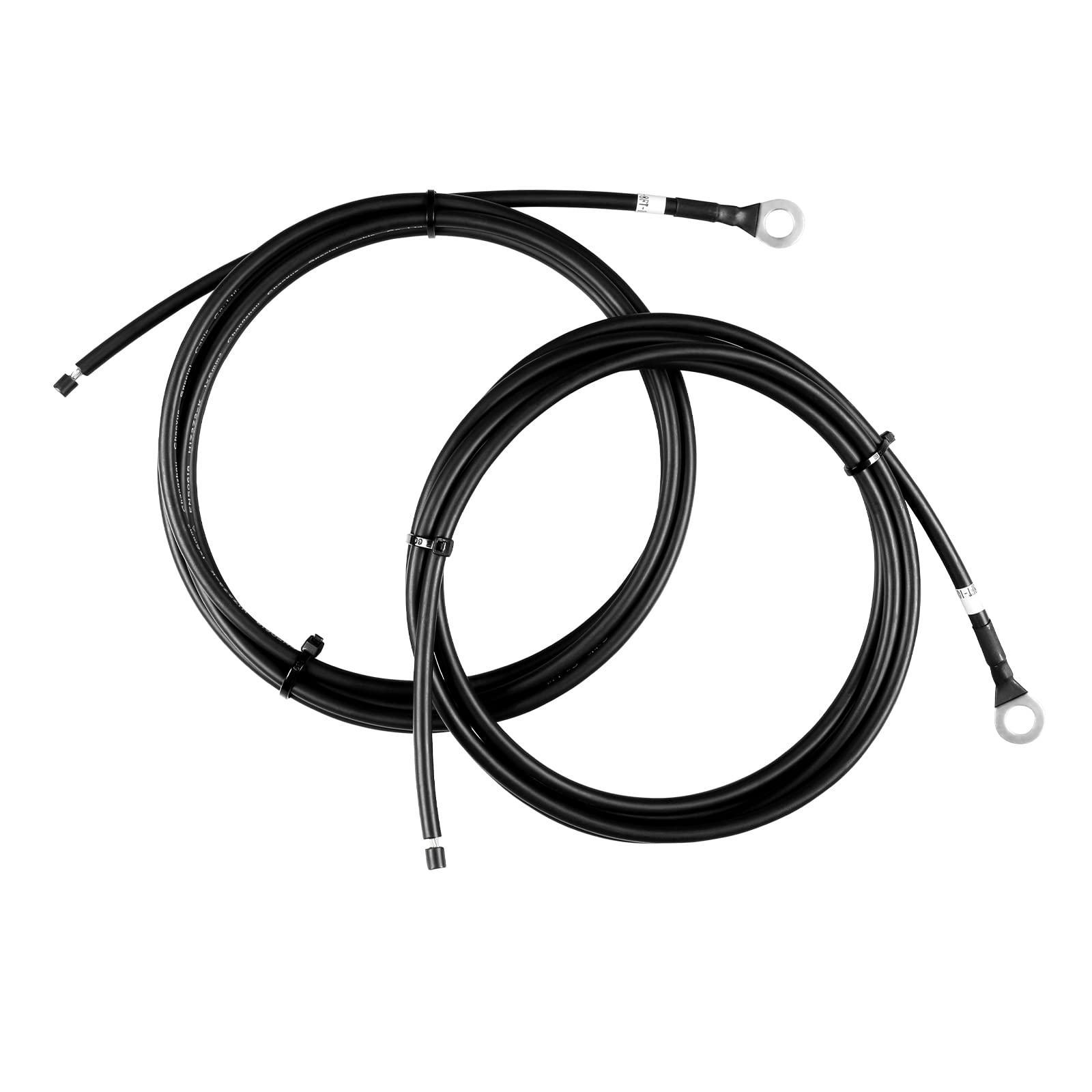

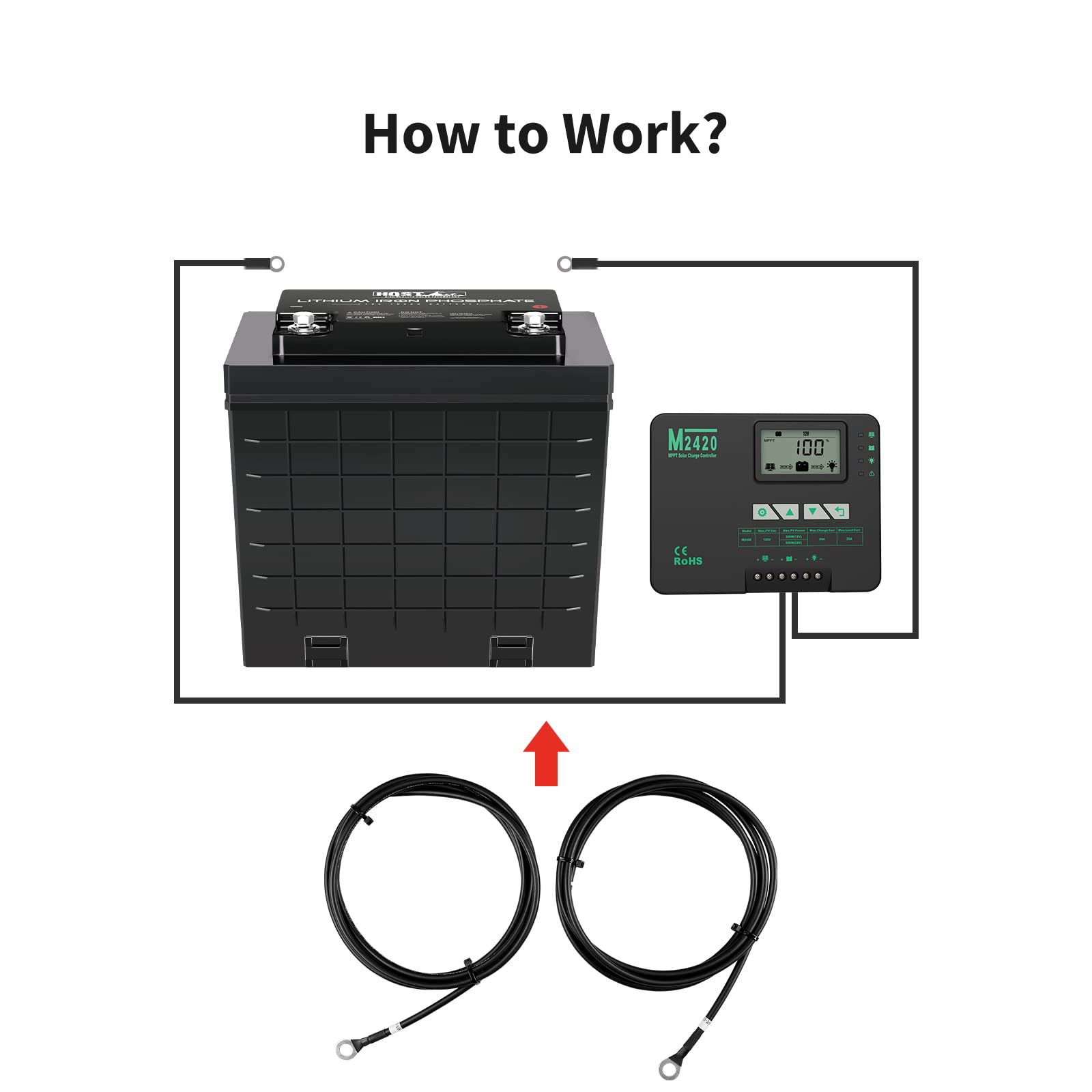

Tray Cable is a set of two wires made for connecting your charge controller to your battery.

UV resistant and waterproof. Produce optimal power output even in high temperature conditions.

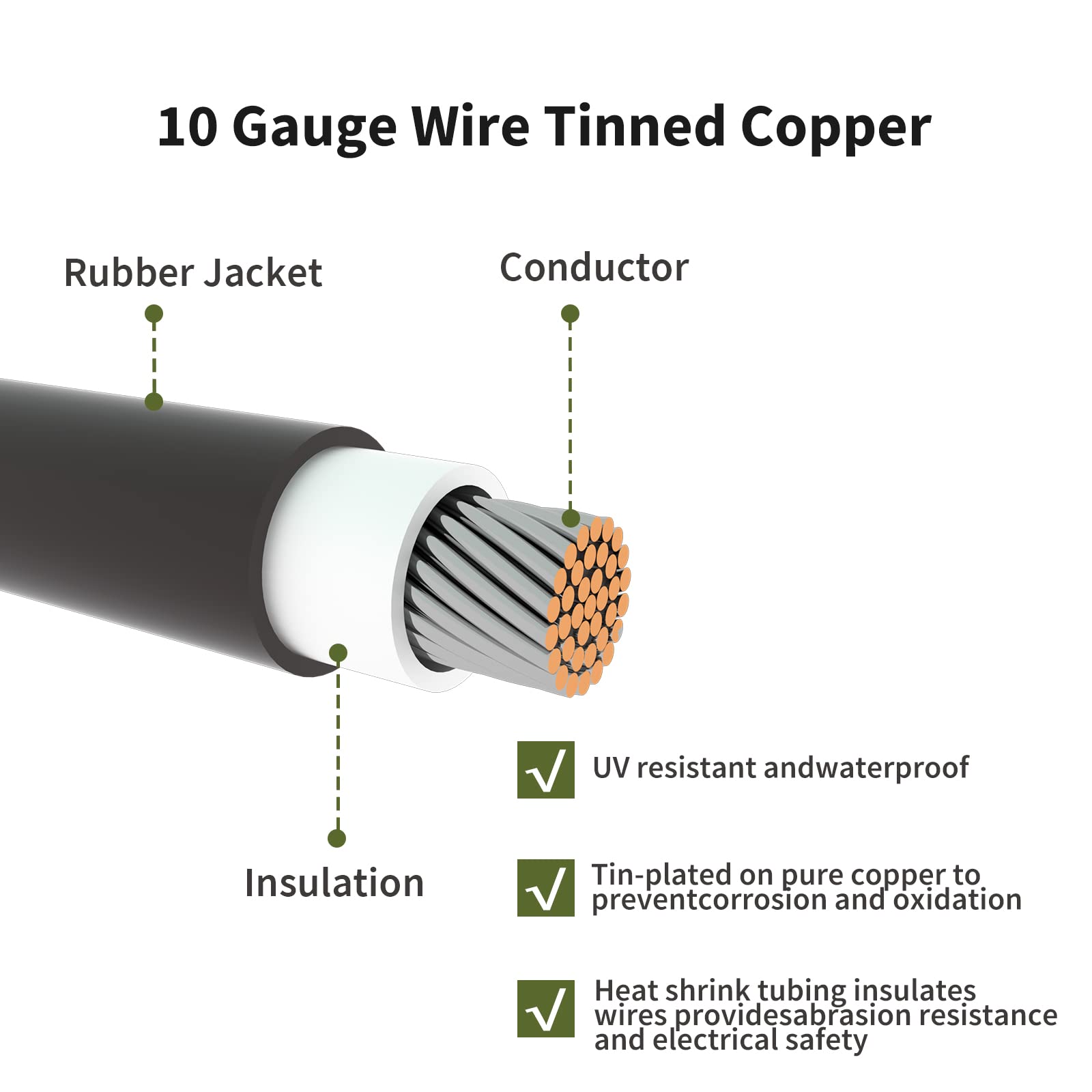

High-purity oxygen-free Copper wiring for maximum conductivity.

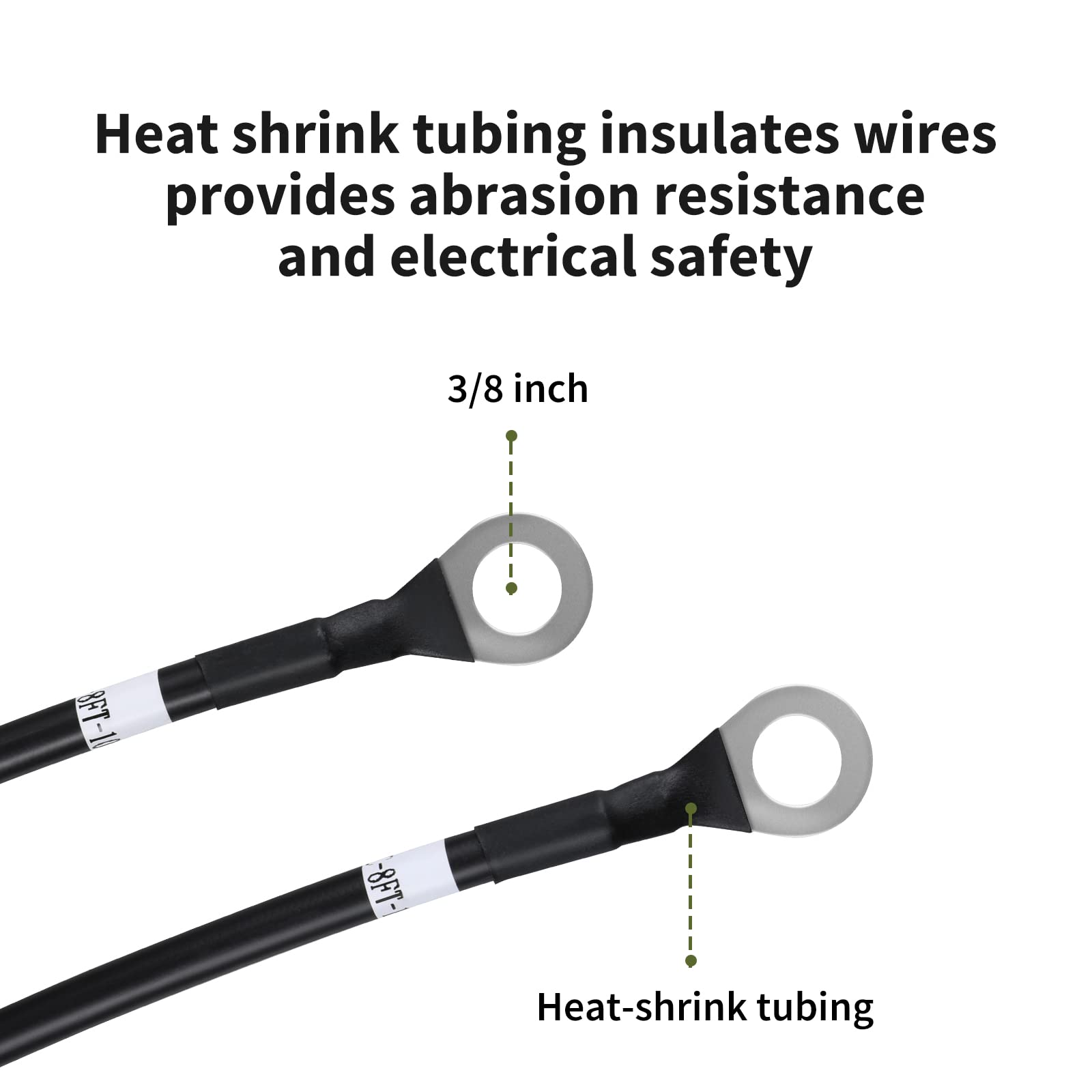

Heat-shrink tubing insulates wires, provides abrasion resistance and electrical safety
