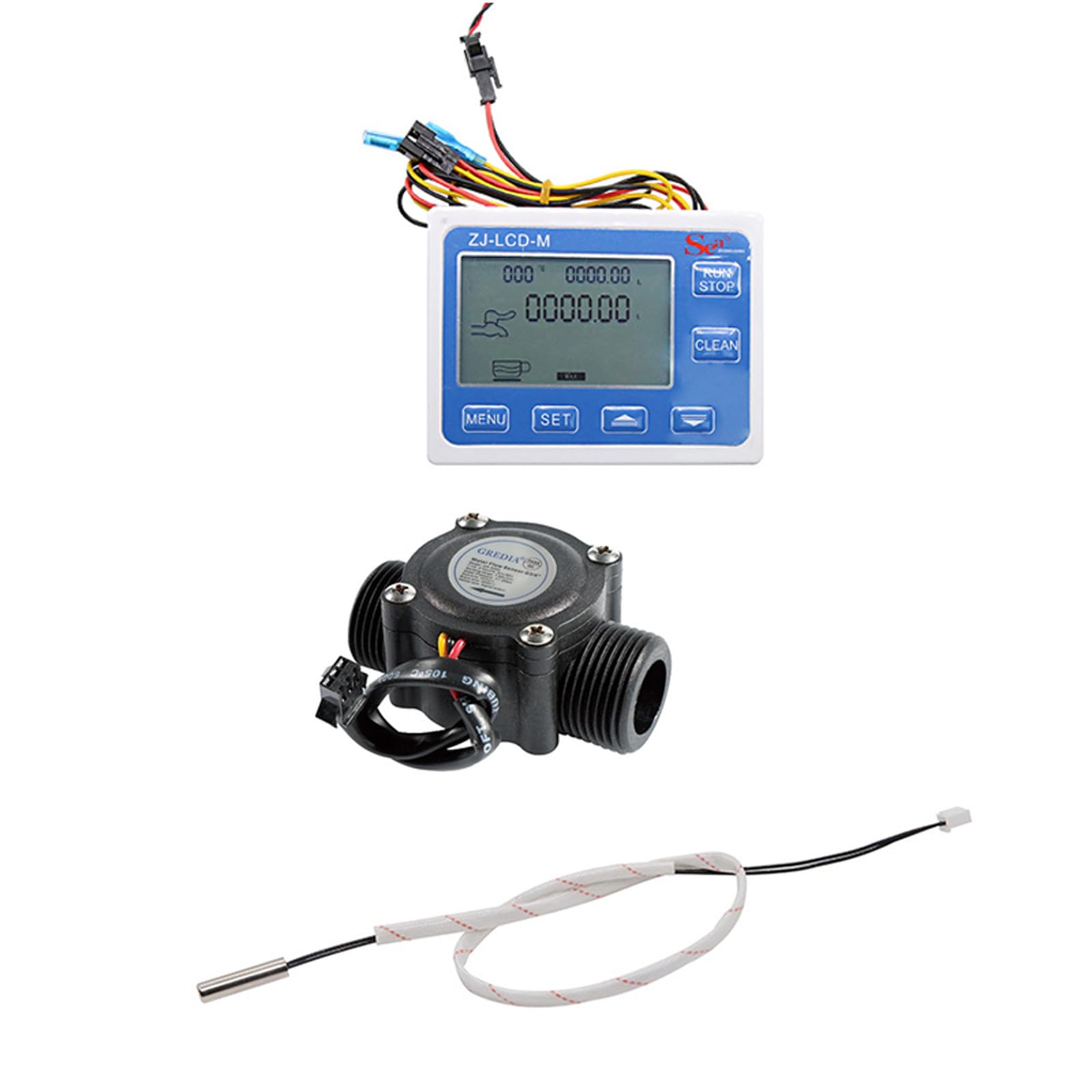

The LCD controller can monitor water flow, total flow, and control quantitative flow. When the flow reaches the set amount, you can reset the quantitative flow. The controller sends a signal to the valve, shuts off the water flow and automatically alarms. It is combined with pulse output flow sensor and solenoid valve to form a flow control system. It is suitable for chemical (pharmaceutical), pharmaceutical, food, small and medium-sized pure water machines, quantitative (batch) management control of gas and liquid flows in industry. Features: 1. Light and thin design, flexible installation: suitable for assembly of various models, easy to use. 2. the use of a large white backlight LCD screen: beautiful, generous, so that it is truly digital. 3. the use of an ultra-wide range of external power supply: make it more widely used, more connected to a variety of models. 4. It can realize the management and display of flow and quantitative (batch) of gas and liquid in various industries. 5. temperature detection: can detect the temperature and display of each liquid. 6. You can set the K constant for various flow meters. Specification: Operating voltage range: DC24V±8/1A Flow range: 1-60L/min, Water Pressure: ≤1.2Mpa LCD size: 3inch,built-in backlight; case size: 100*75*35mm (39.3*29.5*13.7inch) Solenoid valve working voltage: DC12V / 0.3A-0.5A (normally closed) Package Includes: 1 x LCD flow display controller 1 x G3/4 inch flowmeter 1 x Temperature sensor 1 x Instruction
