300W AC Motor Speed Controller - 220V 50/60Hz Variable Speed Regulator for Electric Motors (US-52 Model) - Perfect for Industrial Automation, CNC Machines & Power Tools

Specification: Product model: US-52 Matching motor power: 300W; 400W; 500W (Optional) Working power supply: AC220V 50/60HZ (Voltage fluctuation range ±10% Ue) Use environment: -10~+50 Relative humidity: <90% Speed range: 90-1400r/min 50HZ, 90-1700r/min 60HZ Package list: 1 * Motor Speed Controller Installation and usage method: Turn off the power, connect according to the wiring diagram and confirm that the line connection is correct, do not arbitrarily modify it; Set the external speed knob to "0" before use to avoid transient high currents and damage the controller. This product is controlled by generator feedback voltage, and the control line is divided into two lines: "blue" and "yellow". When the governor is connected to the motor and found that the or speed does not meet the requirements, the US-52 adjusts the side trimmer potentiometer (speed setting adjustment). To change the direction of motor operation, simply replace the jumper "CCW" and "CW" on the wiring on the back of the controller. * When changing direction, you must change the motor after it has completely stopped running. 1) Select COM and CW short circuit, then the motor rotates clockwise; 2) Select COM and CCW to short, then the motor rotates counterclockwise. The action switch only controls the motor to operate or stop, and does not use the power supply for interruption. If it is not used for a long time, please turn off the power.

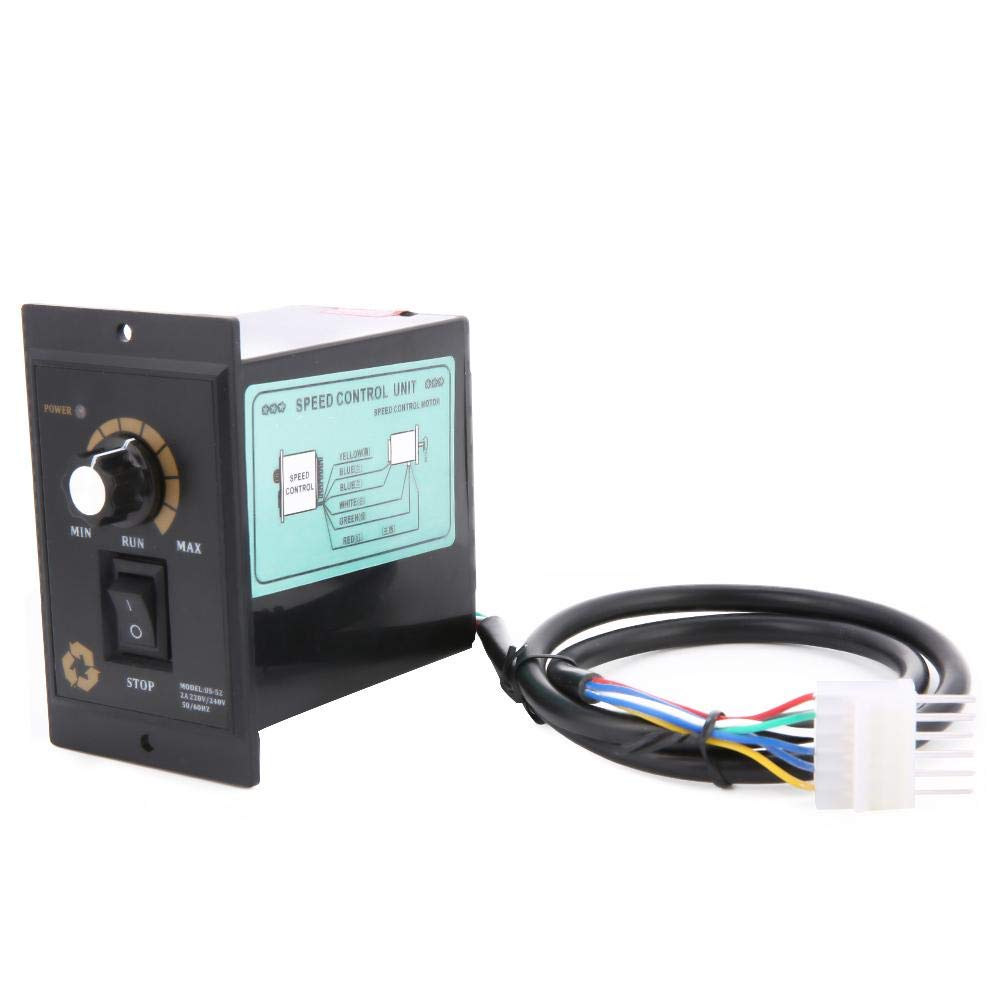

The controller has 6 lines, the black line is the main line of the motor, the red and white are the capacitor secondary lines, the two blue lines are the speed feedback line, and the green line is the ground line.

It is widely used as a speed regulating device in the production line of packaging, printing, food, electronics, instrumentation, clothing industry.

The controller is made of high-quality electronic components with stable and performance. The control accuracy is high, and the micro-control of the motor speed is realized.

The of the product is simple, so that novices can quickly learn and master the method.

At 50/60Hz, the speed control range of the motor governor is 90-1400r/min and 90-1700r/min, respectively.
