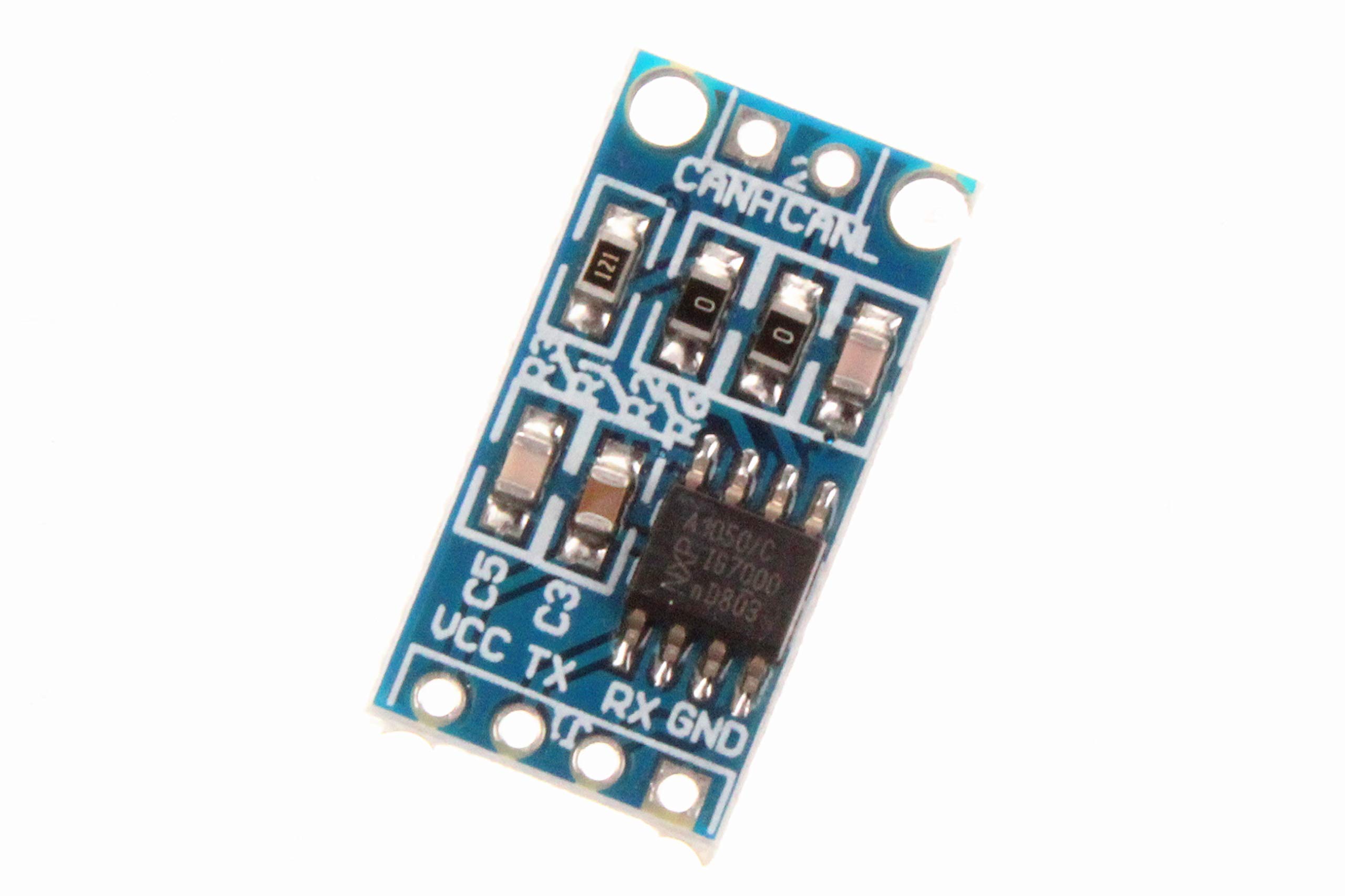

NOYITO TJA1050 CAN Bus Controller Interface Module - High Speed CAN Driver for Automotive & Industrial Applications (Pack of 2) - Perfect for Vehicle Diagnostics, Robotics & Industrial Automation

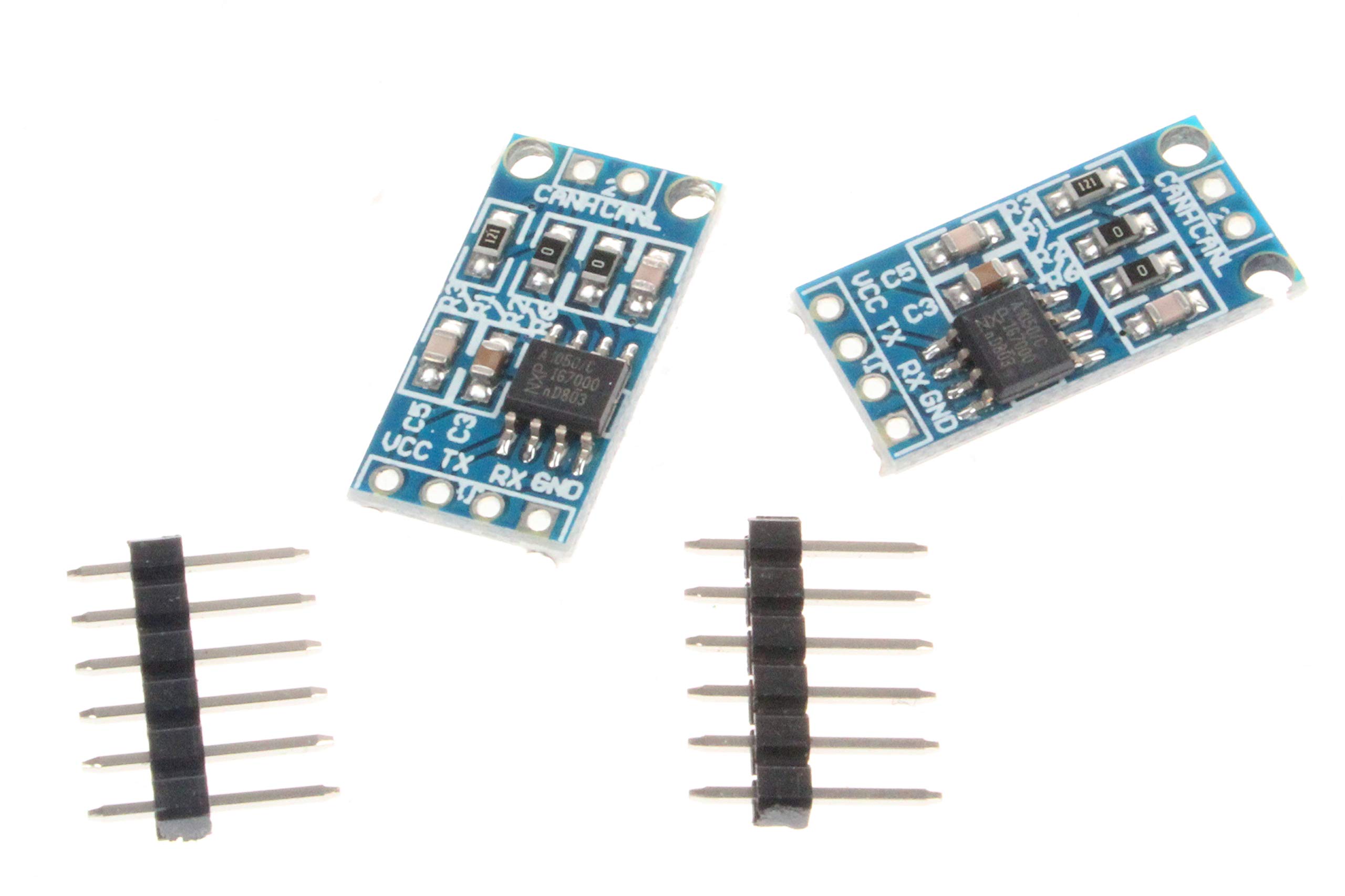

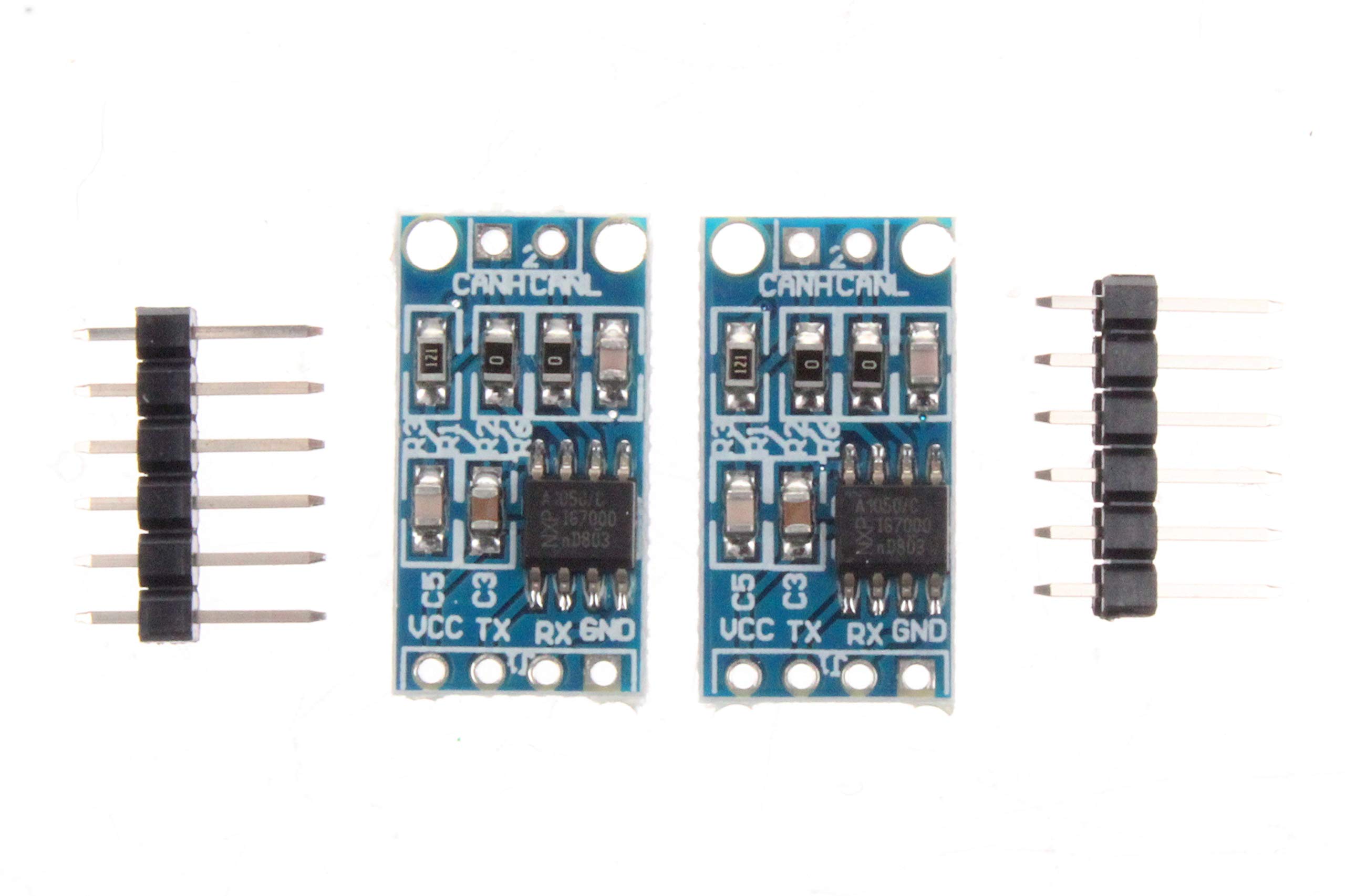

Fratures The TJA1050 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. The TJA1050 provides different transmit performance for the bus and provides different receive performance for the CAN controller. The TJA1050 is the successor to the PCA82C250 high-speed CAN transceiver. The TJA1050 has made significant improvements in the following areas: 1. CANH and CANL ideally match to minimize electromagnetic emissions. 2. Performance is improved when there is no power-on node. Pin Description: TXD: Send data input GND: Ground VCC: power supply RXD: Receive data input CANL: Low level CAN bus CANH: High level CAN bus Package Included: NOYITO TJA1050 CAN Controller Interface Module(Pack of 2)

The TJA1050 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus.

The TJA1050 provides different transmit performance for the bus and provides different receive performance for the CAN controller.

The TJA1050 is the successor to the PCA82C250 high-speed CAN transceiver. The TJA1050 has made significant improvements in the following areas 1. CANH and CANL ideally match to minimize electromagnetic emissions. 2. Performance is improved when there is no power-on node.

NOYITO TJA1050 Source code and Schematic Download

https//1drv.ms/u/s!AlzQUCOyZQhKgSqQ6Q3CUGI2-KU5?e=MRfqkL
