MicoAir405 Flight Controller with BMI088 & SPL06 Sensors - Compatible with Ardupilot & INAV for FPV Drones - Perfect for Aerial Photography, Racing, and DIY Drone Projects

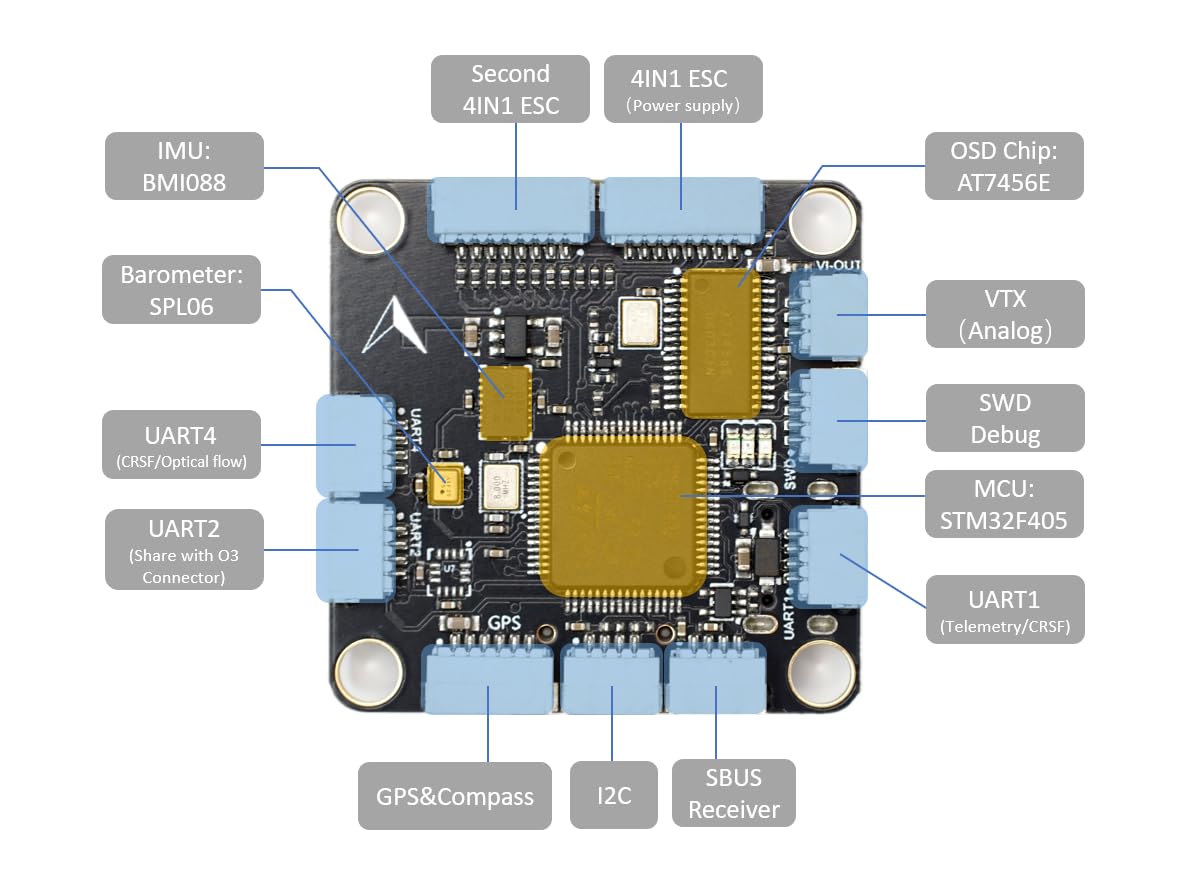

Firmware (The default firmware is Ardupilot. If you need to flash other firmware, you can download it from the following link.) INAVGithubArdupilotMicoAir405 flight controller board is officially supported by Ardupilot starting from version 4.5.0. You can update the firmware through Mission Planner or download all the firmware files (Copter/Heli/Plane/Rover/etc) here.Also, you can use the online firmware builder provided by Ardupilot to customize your firmware for MicoAir405: ArduPilot Custom Firmware Builder.SpecificationsMCU: STM32F405RGT6, 168MHz, 1MB FlashIMU: BMI088Baro: SPL06OSD: AT7456EMicroSD Card Slot6x UART10x PWM1x I2C1x SWD2x ADC (VBAT, Current)USB Type-CBEC 5V 3A output (for controller, receiver, GPS, optical flow or other devices)BEC 9V 3A output (for video transmitter, camera)UART MappingSERIAL0 -> USBSERIAL1 -> UART1 (DMA-enabled)SERIAL2 -> UART2 (DJI-VTX, DMA-enabled)SERIAL3 -> UART3 (GPS)SERIAL4 -> UART4 (DMA-enabled)SERIAL5 -> UART5 (ESC Telemetry)SERIAL6 -> UART6 (RX6 is inverted from SBUS pin, no DMA on TX6)RC InputThe default RC input is configured on the UART6_RX inverted from the SBUS pin. Other RC protocols should be applied at other UART port such as UART1 or UART4, and set the protocol to receive RC data: SERIALn_PROTOCOL=23 and change SERIAL6 _Protocol to something other than ’23’.OSD & VTX SupportThe MicoAir405v2 supports OSD using OSD_TYPE 1 (MAX7456 driver). The SH1.0-6P connector supports a DJI O3 Air Unit connection. Pin 1 of the connector is 9v so be careful not to connect this to a peripheral requiring 5v.PWM Output & Battery MonitoringThe MicoAir405v2 supports up to 10 PWM outputs. Channels 1-8 support DShot. Channels 1-4 support bi-directional DShot. PWM output share grouped and every group must use the same output protocol.The board has an internal voltage sensor and connections on the ESC connector BATT_VOLT_PIN 10BATT_CURR_PIN 11BATT_VOLT_MULT 21.2BATT_CURR_SCALE 116.5CompassThe MicoAir405v2 does not have a built-in compass, but you can attach an external compass using I2C on the SDA and SCL connector.PhysicalMounting: 30.5 x 30.5mm, Φ4mmDimensions: 36 x 36 x 8 mmWeight: 9gPackage ListMicoAir405 Flight Controller *1SH1.0-4P cable 150mm *4SH1.0-6P cable 150mm *1SH1.0-3P cable 95mm *2

1. Compatibility with Open-Source Flight Control Firmware The MicoAir405v2 Flight Controller is compatible with two popular open-source flight control firmwares - INAV and Ardupilot, offering users a wide range of flight control options and customization capabilities. Firmware updates through Mission Planner are straightforward for Ardupilot, or firmware can be customized via the ArduPilot Custom Firmware Builder to meet professional flight requirements.

2. Pioneer in Integrating the BMI088 IMU The MicoAir405v2 is the first flight controller compatible with INAV firmware that incorporates the BMI088 IMU, renowned for its excellent stability, high measurement accuracy, and good vibration resistance. This advanced IMU significantly enhances the positioning accuracy of drones in position mode, making the MicoAir405v2 an ideal choice for users seeking high-performance flight experiences.

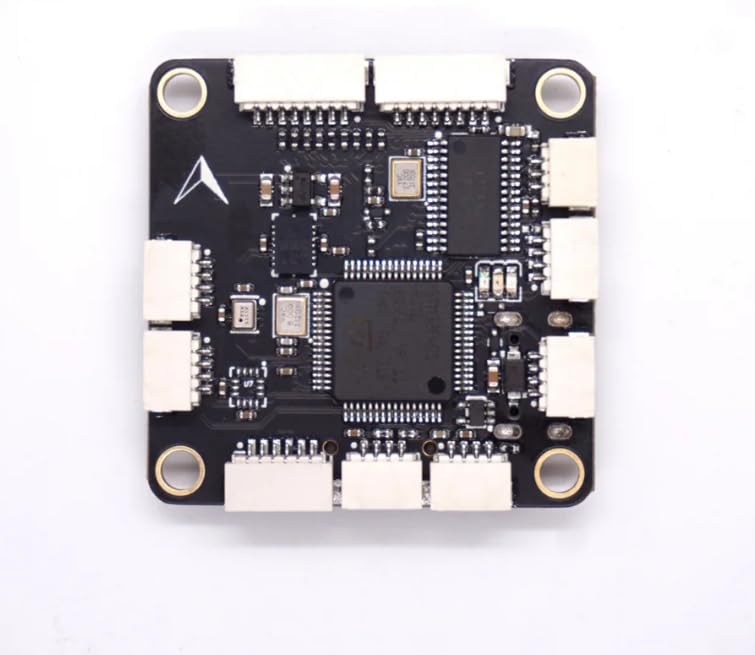

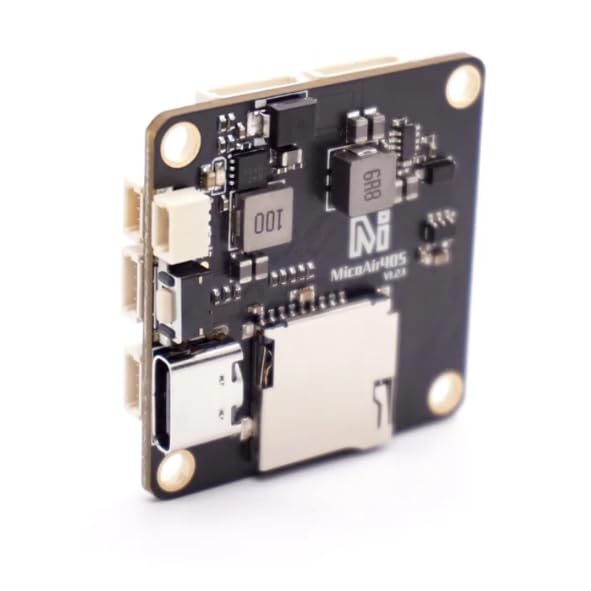

3. Rich and Convenient Interface Design The MicoAir405v2 offers 6 UARTs, 10 PWM outputs, I2C, SWD, and USB Type-C interfaces, supporting a wide range of external device connections. All interfaces utilize socket connections, greatly simplifying the installation process and avoiding the complexity and potential issues of soldering.

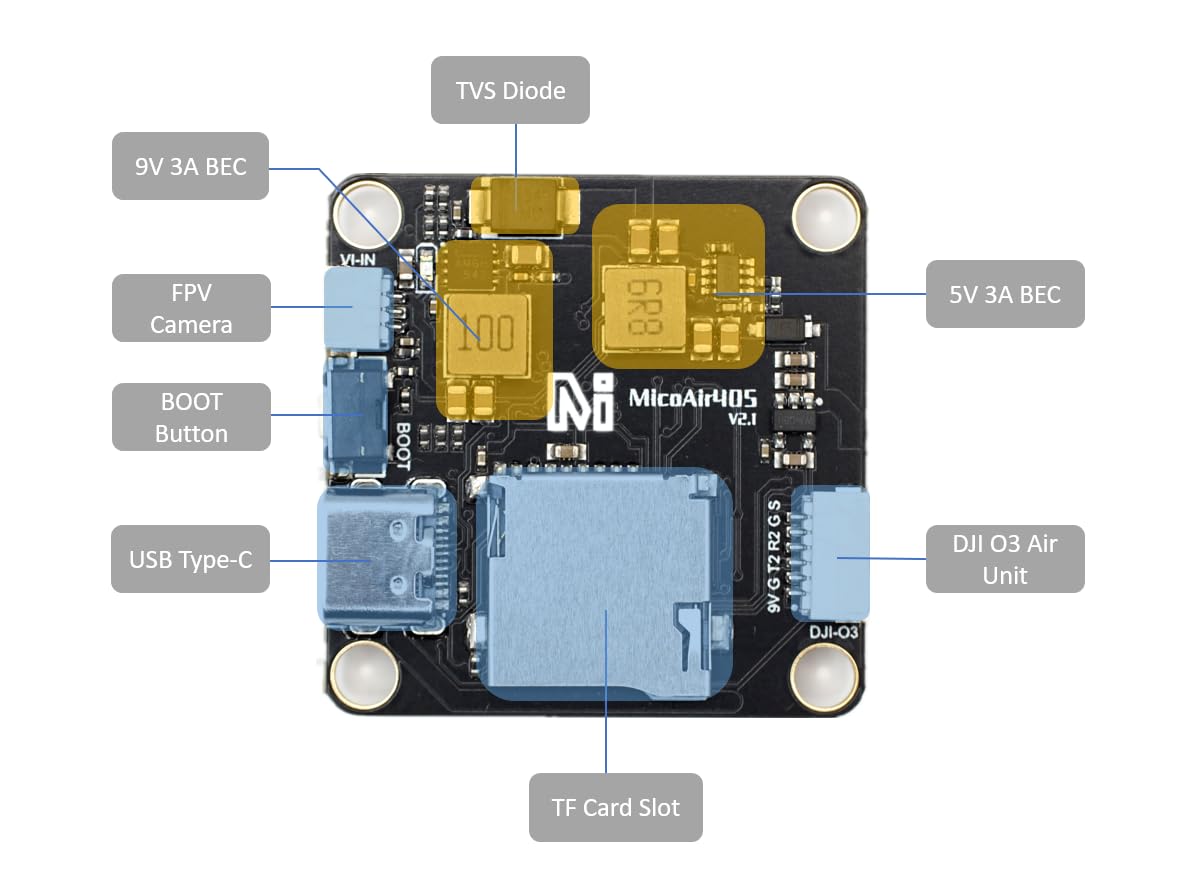

4. Dual BEC Outputs Featuring 5V 3A and 9V 3A BEC outputs, it provides flexible and reliable power solutions for the flight control system and other electronic devices.

5. Advanced UART Mapping and RC Input Configuration Detailed UART mapping and flexible RC input configurations offer compatibility with a variety of protocols and devices, making it easy to integrate the flight control system into custom drone builds.

6. OSD and VTX Support Integrated OSD support and VTX support for the DJI O3 Air Unit ensure an optimized FPV flying experience without the need for additional modules.

7. PWM Output and Battery Monitoring Supports up to 10 PWM outputs and has precise battery monitoring capabilities suitable for up to 6S LiPo batteries, enhancing flight reliability and safety.

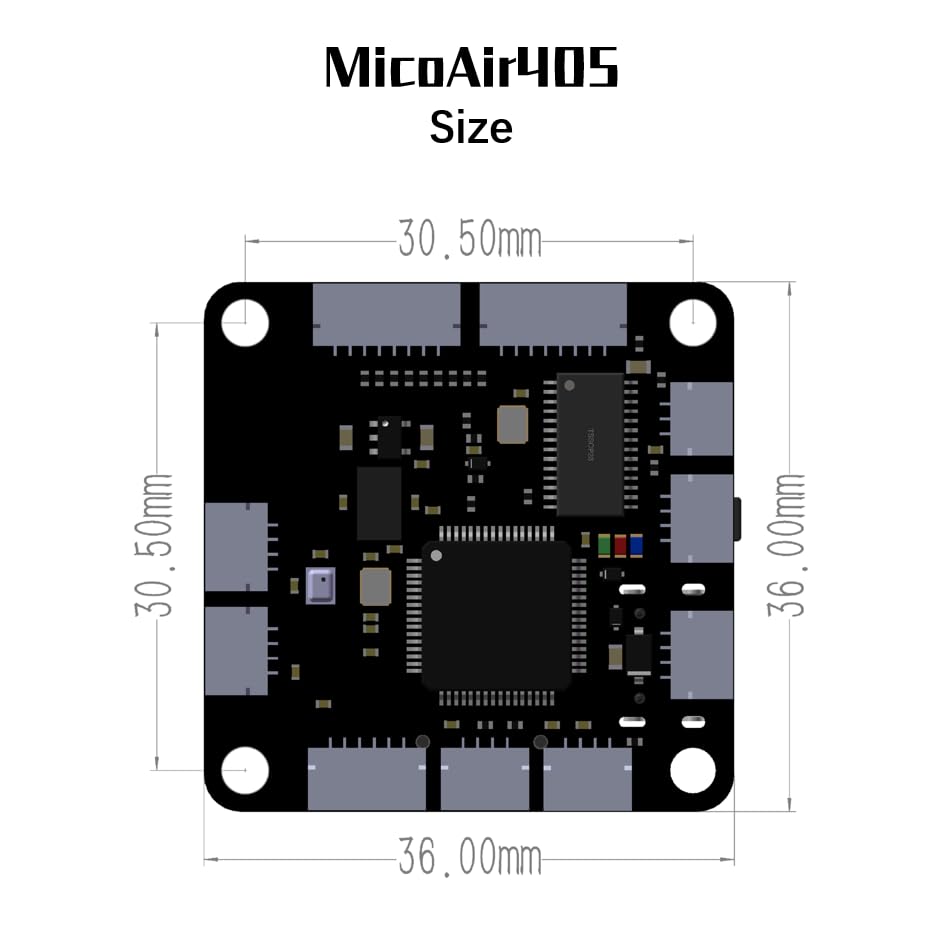

8. Compact and Lightweight Design Optimized size and weight make the MicoAir405 suitable for a wide range of drones, from small racing drones to larger UAVs, providing outstanding flight performance without adding unnecessary burden.
