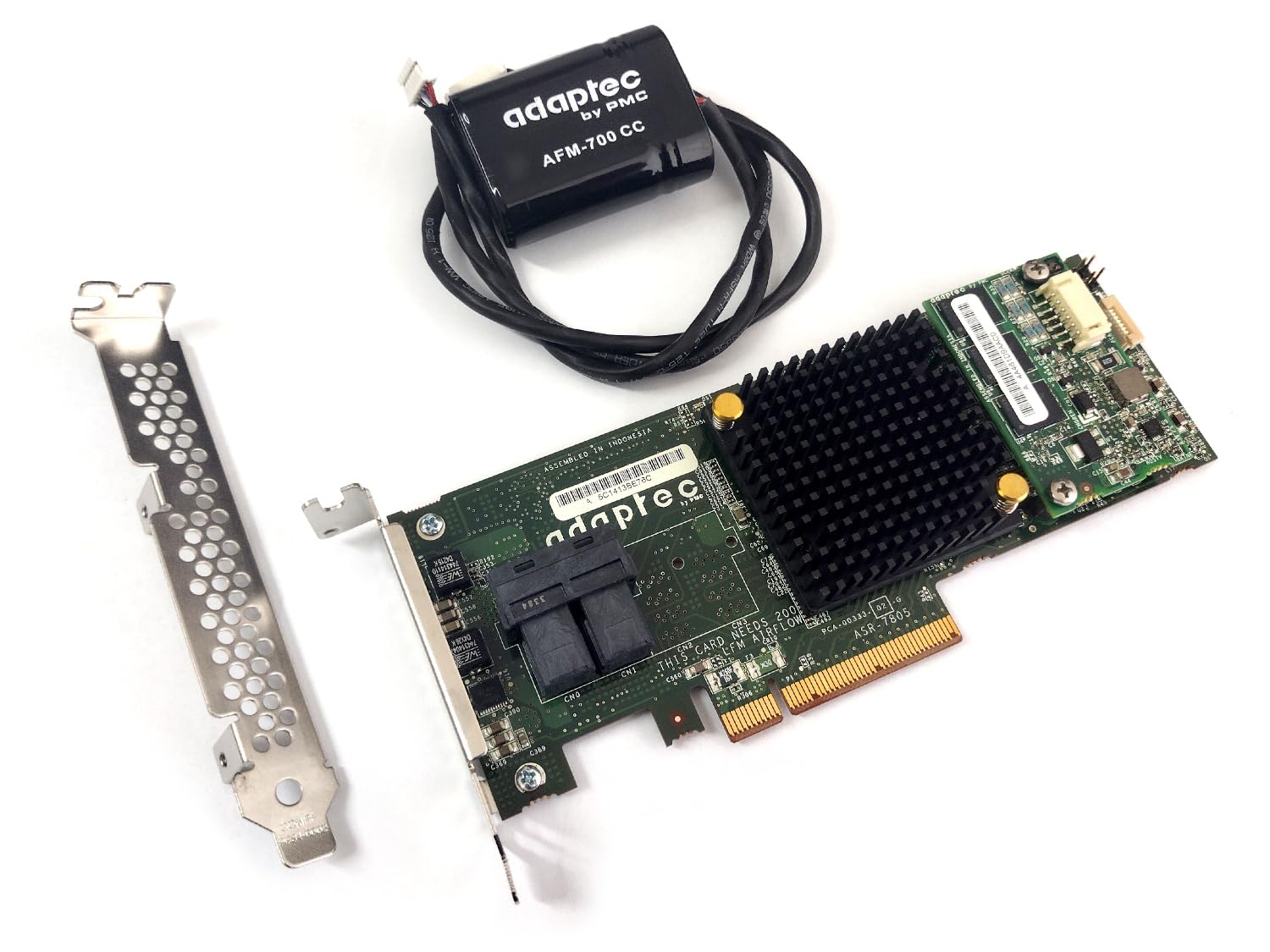

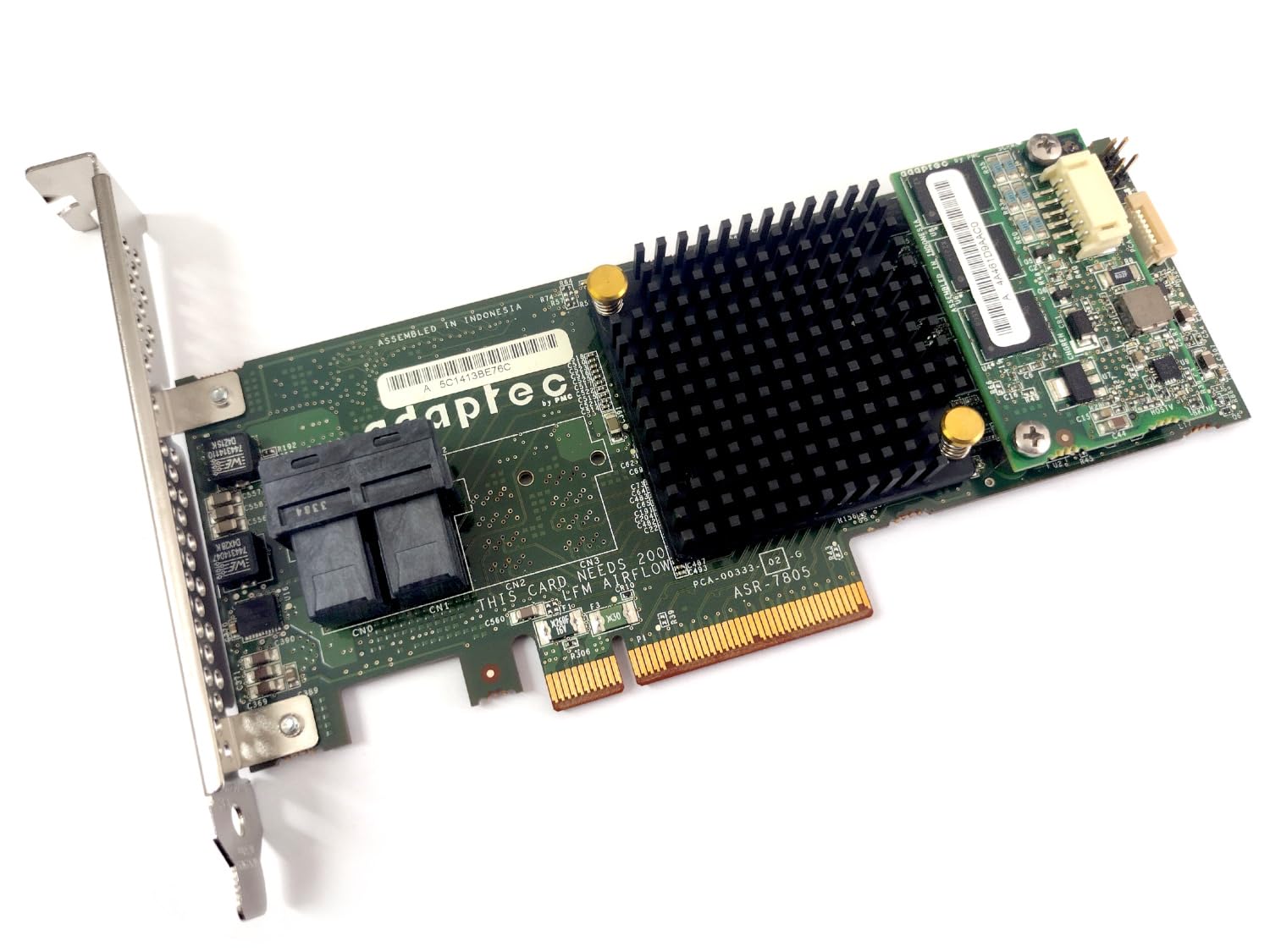

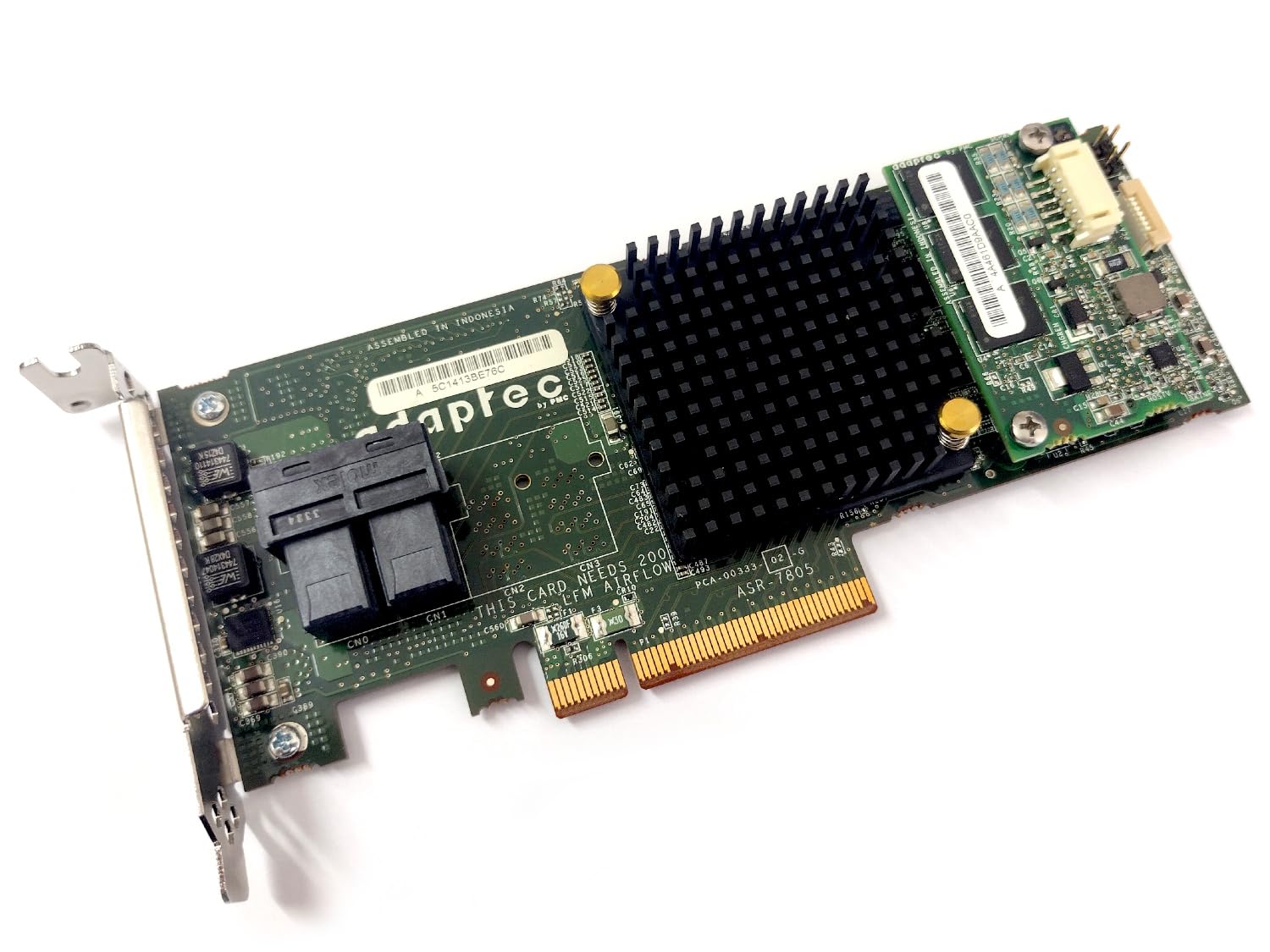

Adaptec RAID 7805 8-Port PCIe 3.0 Storage Controller Card 2274100-R - High Performance SAS/SATA HBA for Server Data Storage & Backup Solutions

The Adaptec series 7 RAID adapter family features PMC's 24 port PM8015 RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 6 Gb/s SAS ports to enable a new generation of high performance RAID adapters that are unmatched by any other ROC in the industry. Adaptec series 7 RAID adapters are available with 8 native SAS ports. While the PCIe Gen3 interface doubles bandwidth to the host compared to PCIe Gen2, it requires at least 16 6 Gb/s SAS ports to double the bandwidth to the storage devices.

RAID 0/1/1E/5/6/10/50/60

2 x SFF-8643 mini-SAS HD Internal Connectors

Up to 6Gb/s

6 Gb/s throughput at each port

LP MD2 for up to 8 native SAS ports

Direct connect to backplanes

Maximum performance for up to 24 SSDs

Mini Sas Hd Connectors And Sas Hd Cables - For Fit And Function In Dense Server Configurations

Support For Up To 256 Sas Devices

Support for SSD, HDD, Autoloader, RBOD, Tape

Auto Configuration Of Hba And Simple Volume Modes - "Set It And Forget It"
