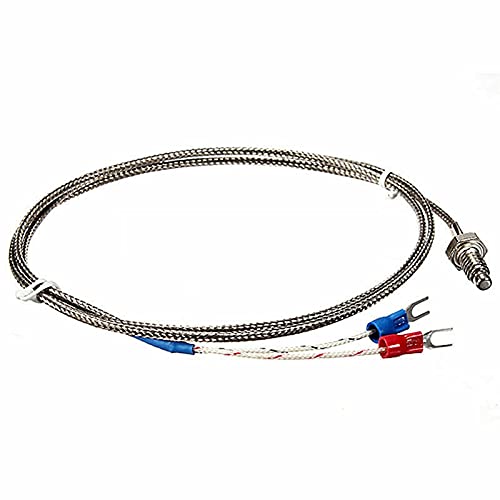

Measuring accuracy: ±0.5%FS Cold-end compensation tolerance: ±2C can be modified by software in 0~50 C Resolution: 14 bit Sampling cycle: 0.5 Sec Dimensions:48 x 48 x 110 (mm) ±0.2mm Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by: LED PIN control (including ON/OFF, step-type PID and continuous PID) Self-tuning control Relay output: contact capacity 250V AC 3A (resistive load) Alarm function output: 1 way Contact capacity of output: 250V AC 3A (resistive load) Setting value (SV): identical to measuring range (PV) Proportional band (P): 0~full range (ON/OFF control when set to 0) Integral time (I): 0~3600 sec (No integral action when set to 0) Derivative time (D): 0~3600 sec (No derivative action when set to 0) Heat-reset proportional cycle: 1~100 sec Detective temperature range 0 to 400C Insulation resistance: >50M ohm(500V DC) Insulation resistance: 1500V AC/min Power Consumption: 10 VA Service environment: 0~50C, environment with no corrosive gas 30~85% RHPackage included: 1 x PID Digital Temperature Controller Relay Output 1 x with K Thermocouple
